BIFFI IMVS2000v2 - Spare Parts

September 2019
Installation, Operation and Maintenance Manual
MAN720_IMVS2000v2_IOM Rev. 6
MAN720_IMVS2000v2_IOM Rev. 6
Section 11: Parts List
Parts List
11.2 Spare Parts

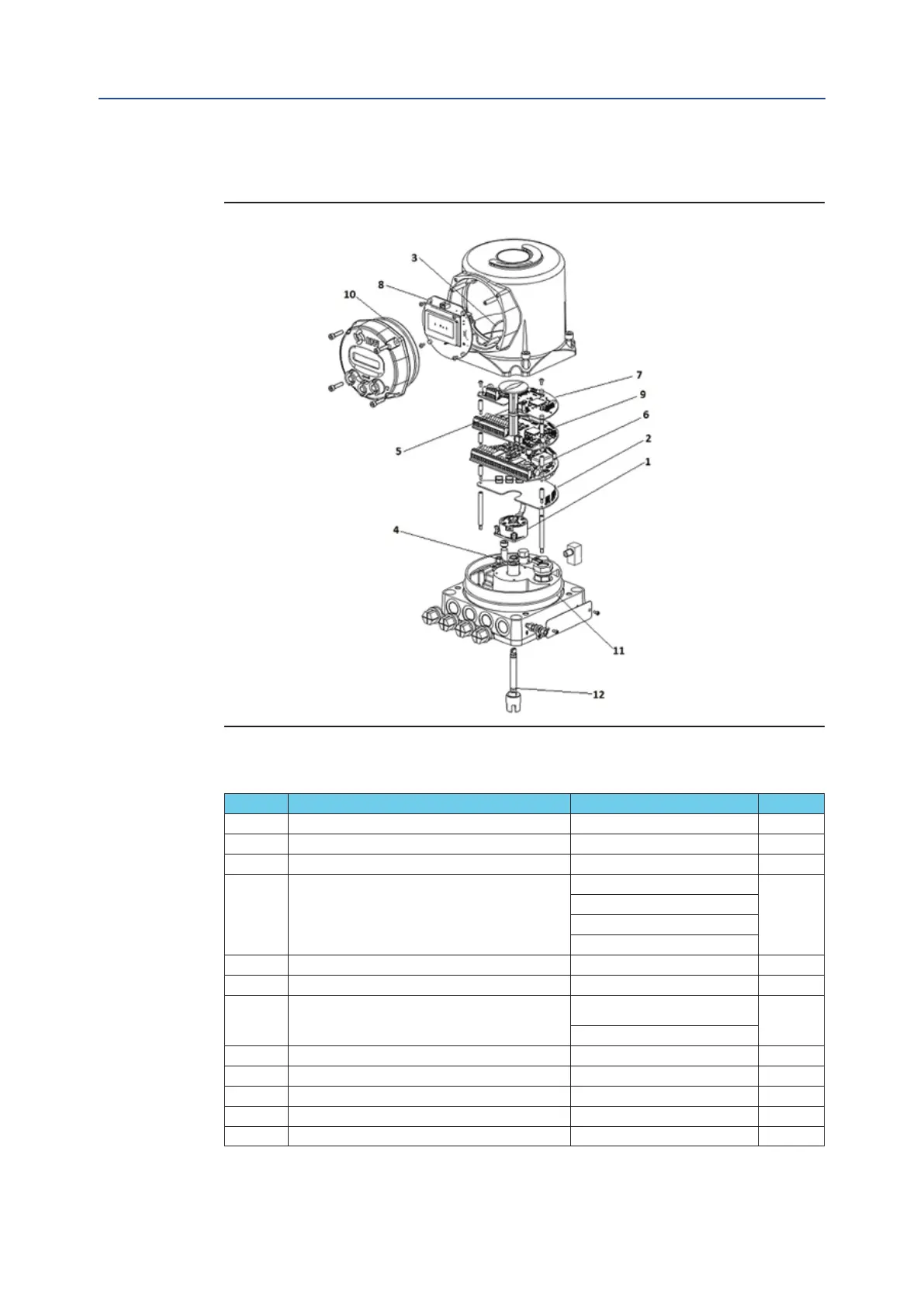

Figure 41
Table 15.
Pos. Description Code Qty.
1 POSITION SENSOR ASSEMBLY 4400000011 1
2 BARRIER CARD 492BAR1000 1
3 LOGIC-DISPLAY CABLE 492IMVSCB1 1
4 IMVS2000v2 PRESSURE SENSOR
434IMV1000 (10 bar)
0-3
434IMV2000 (100 bar)
434IMV3000 (200 bar)
434IMV5000 (400 bar)
5 POSITION INDICATOR 3340030110 1
6 BASE POWER CARD 492IM30100 1
7 BUS CARD (OPTIONAL)
492IM30400 (HART)
1
492IM30500 (MODBUS)
8 DISPLAY CARD 492IM30300 1
9 LOGIC CARD 492IM30200 1
10 O-RING D=101.32 W=1.78 FLR 8102045000 1
11 O-RING D=145.72 W=2.62 FLR 8102162000 1
12 O-RING D=6.86 W=1.78 FLR 8105052000 1
