BIFFI IMVS2000v2 - Configuration G - Wiring Diagram

September 2019
Installation, Operation and Maintenance Manual
MAN720_IMVS2000v2_IOM Rev. 6
MAN720_IMVS2000v2_IOM Rev. 6
Section 9: Wiring Diagrams - SIgnals Description
Wiring Diagrams - Signals Descriptions

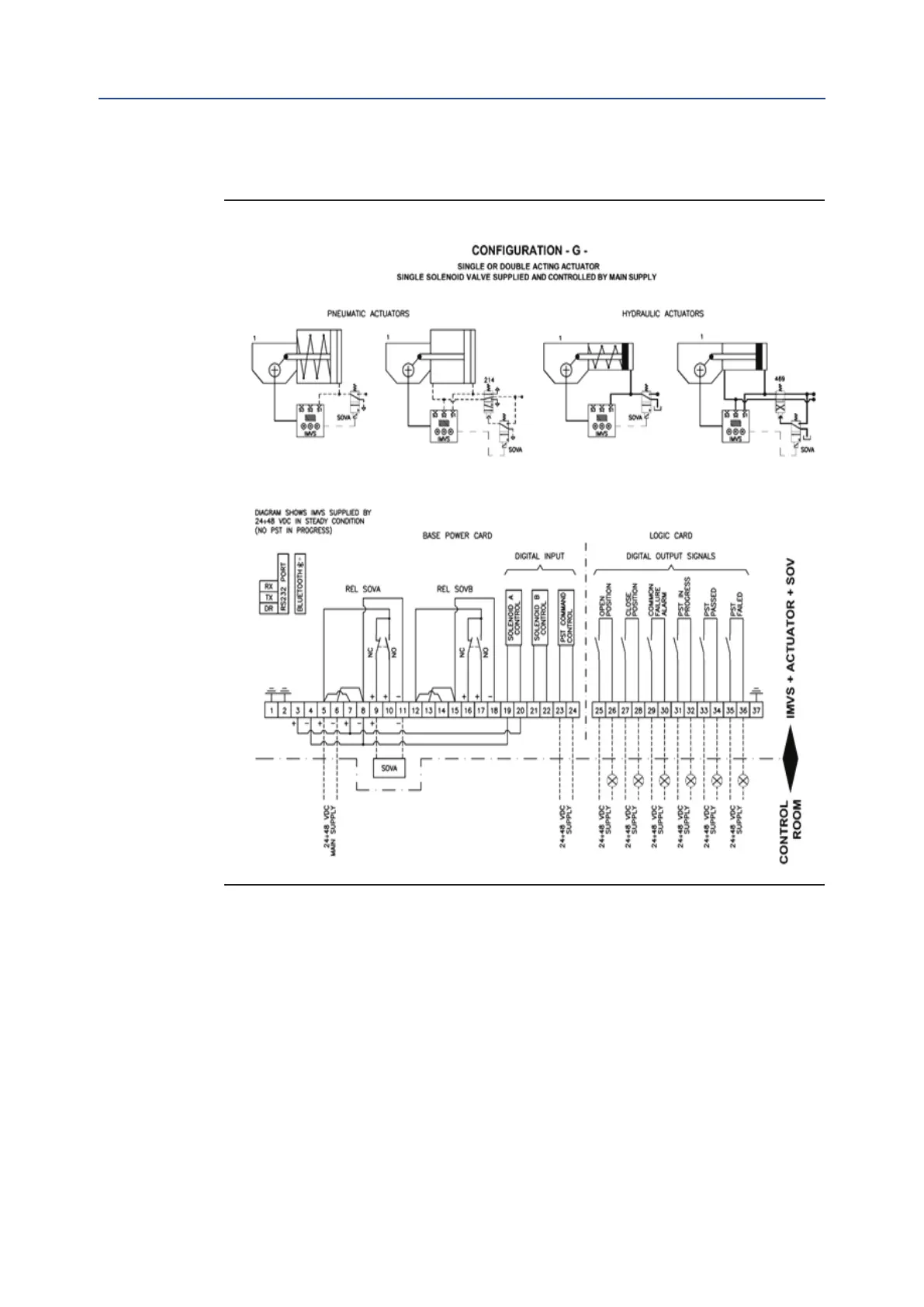

9.2.7 Configuration G – Wiring Diagram
Figure 24
Mandatory Connections:
- MAIN SUPPLY (terminals 5-6)
- SOVA (terminals 9-11)
All the other connections are optional (see Section 9.1.1 for details).
84
