Section 10: Installation – Start-Up
Installation – Start-Up
10.4 Mechanical Connections
10.4.1 Mounting IMVS2000v2 onto RP/RPS type actuators

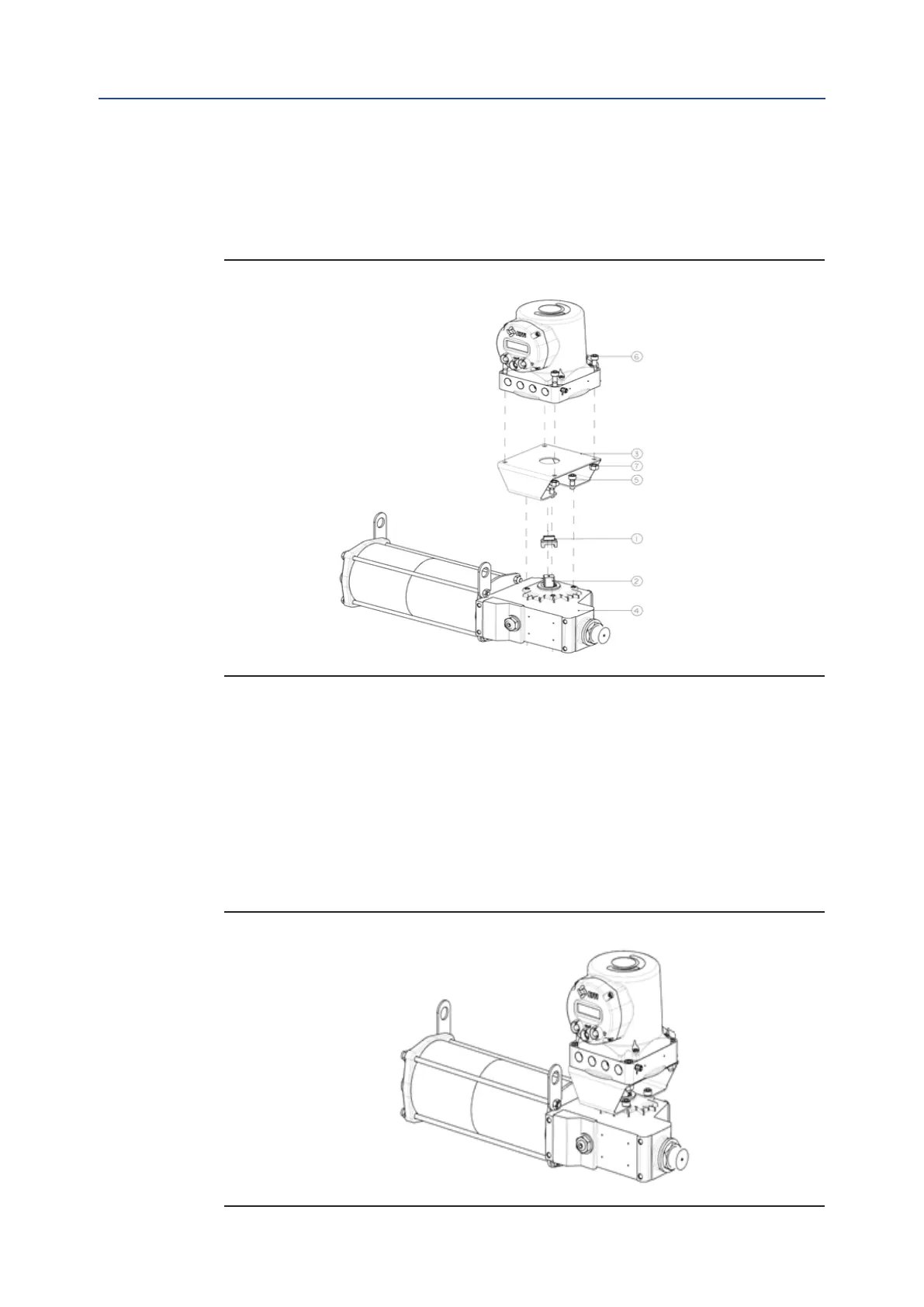

Figure 30
Referring to the picture above, perform the following steps:
• Assemble the joint (1) onto the actuator shaft (2);
• Assemble the bracket (3) onto the actuator carter (4) by tightening the 4 screws (5):
(the bracket orientation is shown in the picture);
• Assemble the IMVS2000v2 device onto the bracket, checking carefully that the female part of
the IMVS2000v2 position shaft is mounted correctly onto the male part of actuator joint (2);
• Tighten the 4 screws (6) and nuts (7) in order to fix the IMVS2000v2 device onto the bracket; and
• The picture below shows the IMVS2000v2 device assembled onto the actuator.
Figure 31
