Section 9: Wiring Diagrams - SIgnals Description
Wiring Diagrams - Signals Descriptions

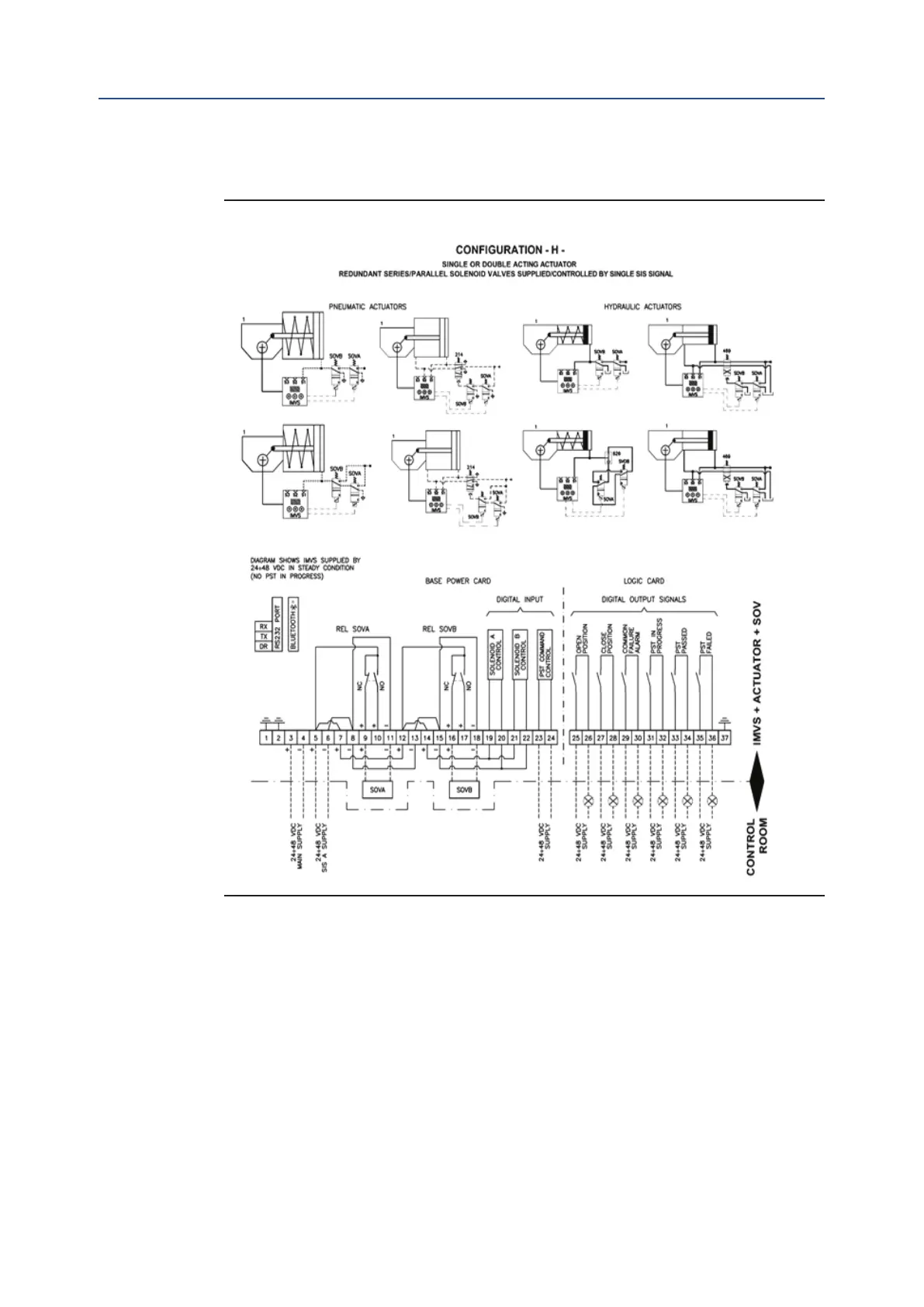

9.2.8 Configuration H – Wiring Diagram
Figure 25
Mandatory Connections:
- MAIN SUPPLY (terminals 3-4)
- SIS A SUPPLY (terminals 5-6)
- SOVA (terminals 9-11)
- SOVB (terminals 16-18)
85
