BIGTREETECH Octopus MAX EZ V1.0 User Manual
14

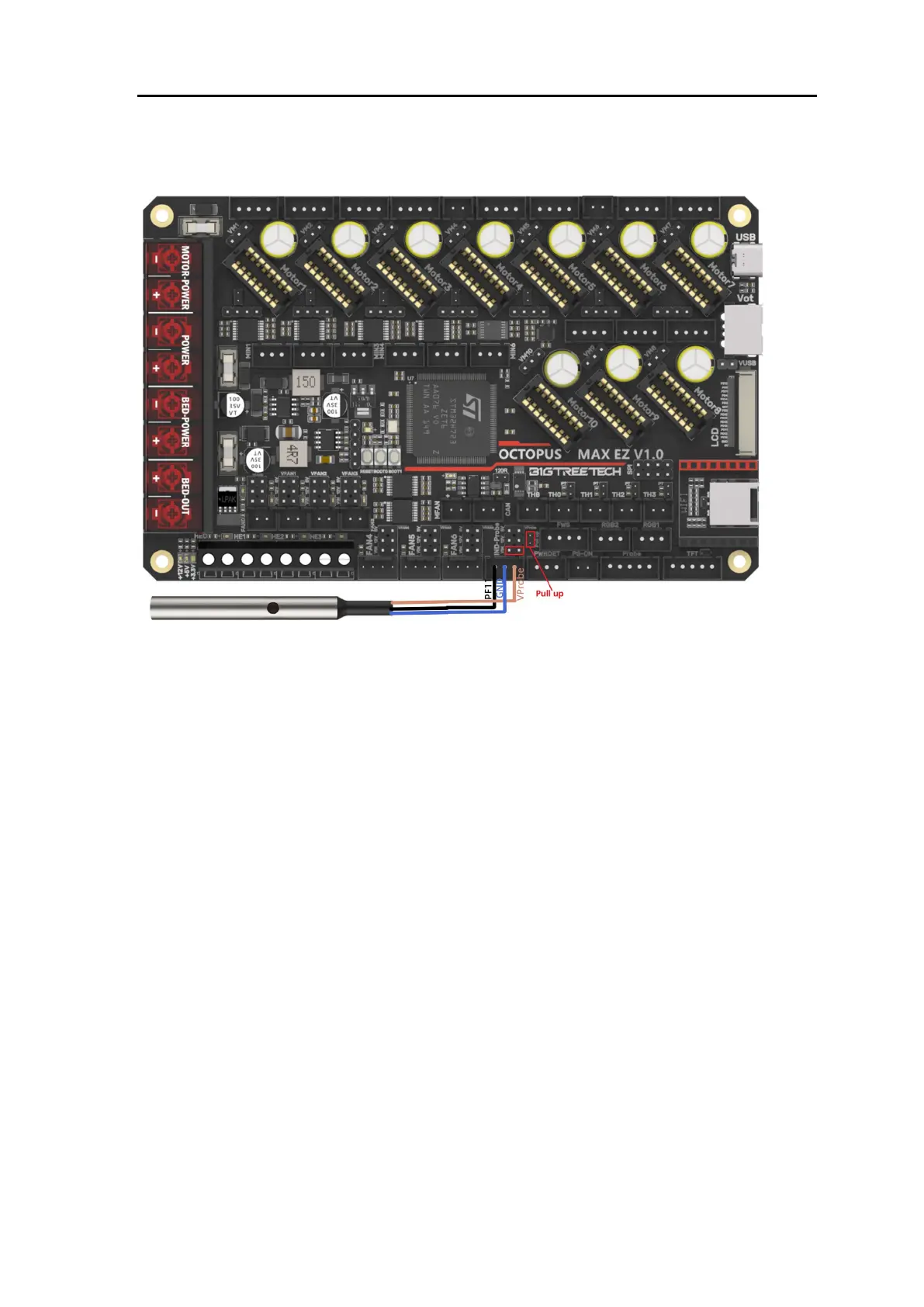

As shown in the figure below, 24V as an example, normally closed (PNP type),
need for shorting through a jumper.
