BIGTREETECH Octopus MAX EZ V1.0 User Manual
13

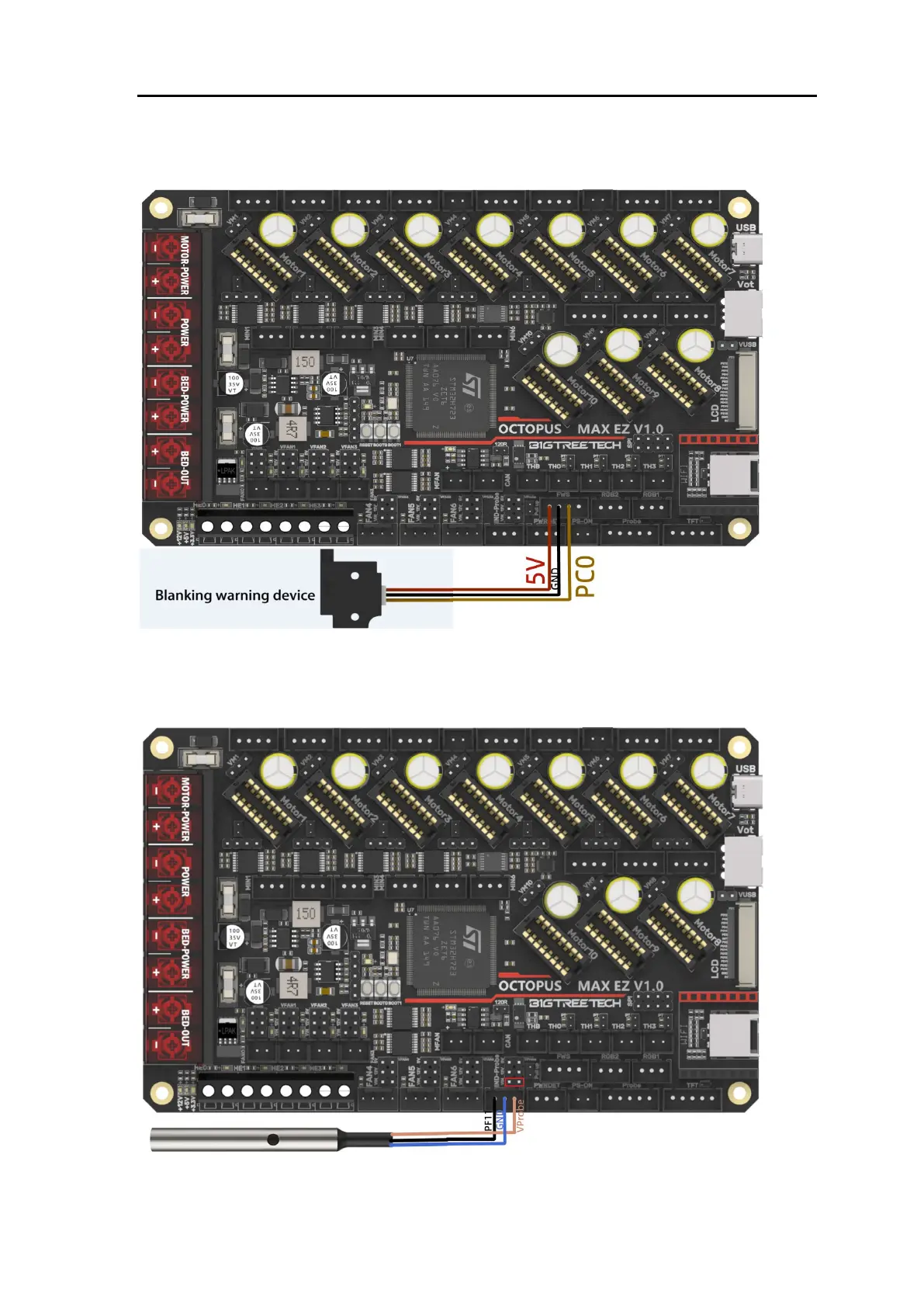

Filament Sensor Wiring
Proximity Switch Wiring
As shown in the figure below, 24V as an example, normally open (NPN type), no
need for shorting through a jumper:
