BIGTREETECH Octopus MAX EZ V1.0 User Manual
9
Connection Description

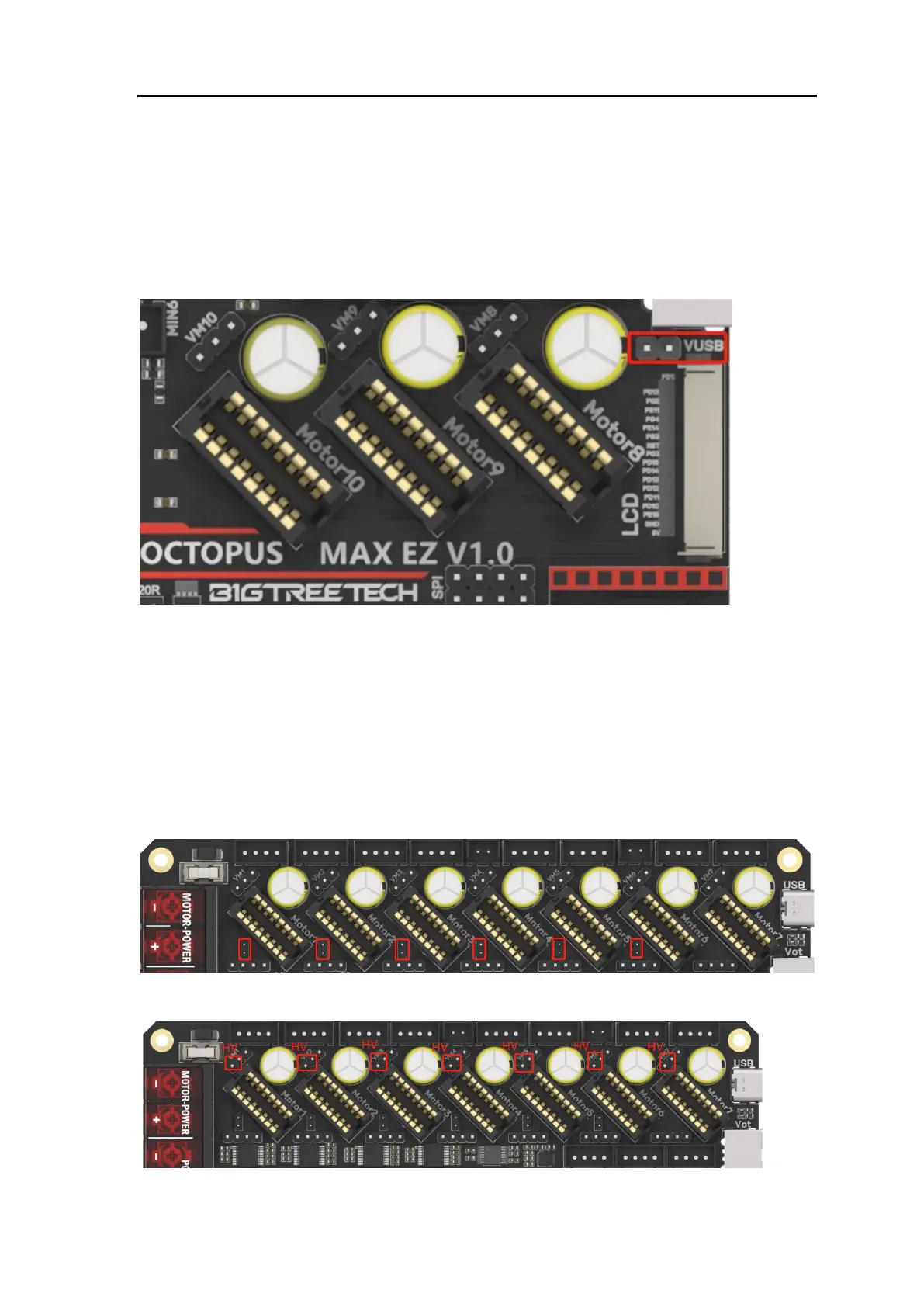

USB Power Supply
After the Octopus MAX EZ has been powered, the Red light D32 on the left side
of the MCU will light up, indicating power on. When using only USB to power the
board or to supply power via USB, please insert the jumper cap onto the VUSB.
Stepper Motor Driver
UART/SPI Mode of Driver
Set in the firmware, no need for a jumper.
TMC Driver DIAG (Sensorless Homing)
When using sensorless homing, place jumpers according to the diagram below,
there is no need to cut the DIAG pin off when not being used. (Motor1-Motor6).
Driver Voltage Selection
