Binder KBF 720 (E5.2) - Function Overview of Program Controller MB1 Displays

KBF / KBF P (E5.2) 02/2012 page 36/103

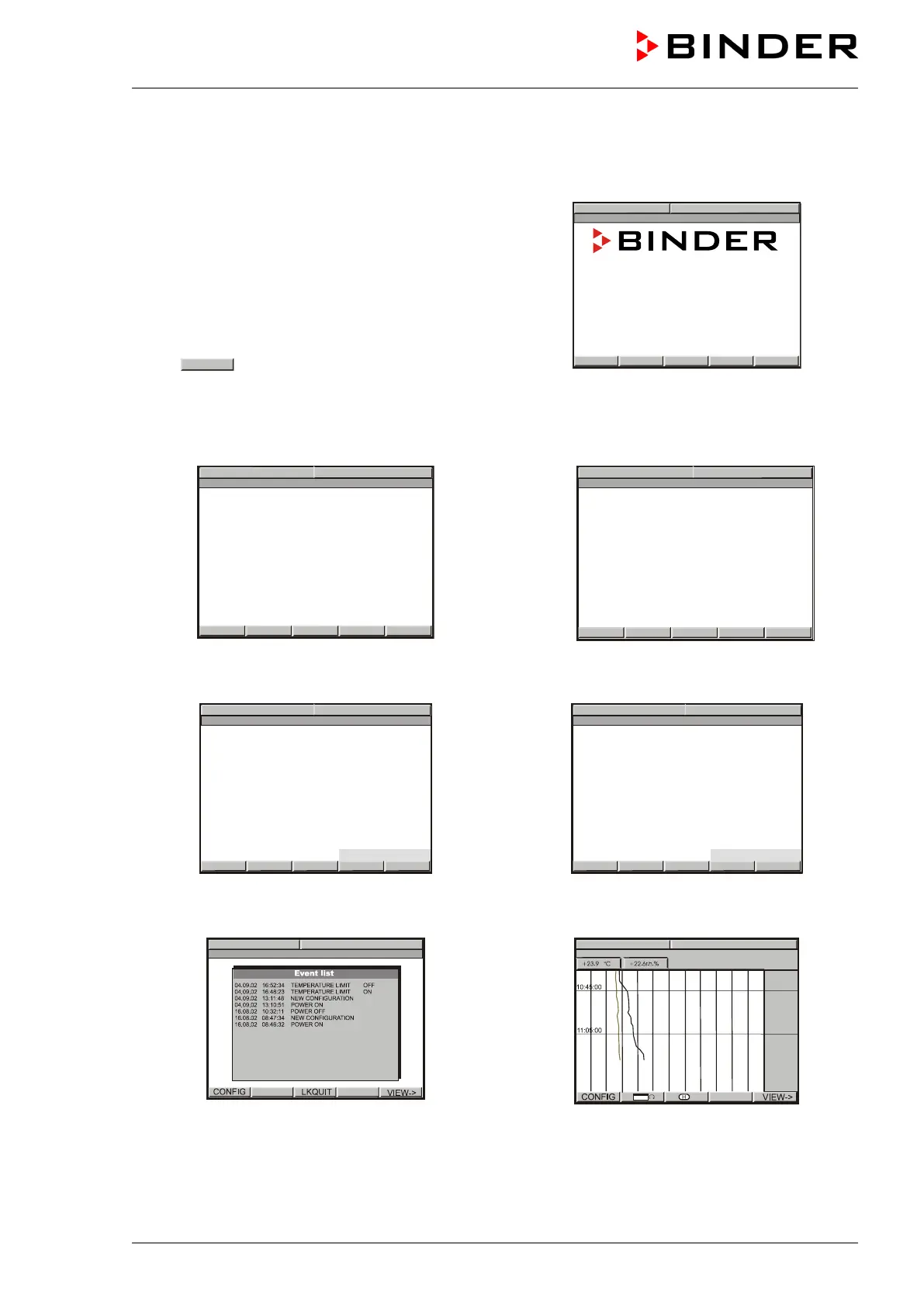

6.2 Function overview of program controller MB1 displays
The main operation level contains the following dif-
ferent displays:
• Normal display
(Idle Mode or Manual Mode or
Program Mode)
• Event List
• Chart recorder function
• Contact page
Button
VIEW ->
permits toggling between the displays.
The Normal display enables comparison of the cur-
rent temperature and humidity (W) to the set-point
values (X) or shows the fan working rate.
CONTACT PAGE
08:43:55 20.10.09
Service Hotline
International: +49 7462 205 555
USA Toll Free: +1 866 885 9794
or +1 631 224 4340
: +7 495 988 1517
Россия и СНГ
service@binder-world.com
www.binder-world.com
CONFIG
VIEW->VIEW->
Best conditions for your success
BINDER Service contact display.
NORMAL DISPLAY Idle Mode
W
X
08:43:55 15.12.09
CONFIG
VIEW->
PGM
TEMP
0.0
26.8
°C
HUMID
0.0
58.6
%rH
HAND
or
W
X
08:43:55 15.12.09
CONFIG
VIEW->
PGM
FAN SPEED
50
%
HAND
X - TEMP
26.8
°C
X - HUMID
58.6
%rH
No heating or refrigeration, no humidification or dehumidification. The actual values (X) approximate ambi-
ent temperature and humidity. Fan operates at a 50% rate.
NORMAL DISPLAY Manual Mode
W
X
08:43:55 15.12.0
9
CONFIG
VIEW->
PGM
TEMP
40.0
36.8
°C
HUMID
65.0
58.6
%rH
HAND
Temperature and humidity values are maintained
according to the previous entered set-points (W).
NORMAL DISPLAY Program Mode
W
X
08:43:55 15.12.0
9 PROGRAM 01/SEC1 00:09:59
CONFIG
HAND VIEW->
PGM
TEMP
40.0
36.8
°C
HUMID
65.0
58.6
%rH
AUTO
A temperature and humidity program entered be-
fore via a program table is run.
EVENT LIST
Overview over the last 16 events or error
occurrences of the unit.
CHART RECORDER FUNCTION
Graphical display of the current temperature and
humidity values and review of the previous meas-
urements on a historical display. A memory interval
of 5s corresponds to a supervision period of 2.5
days.
08:43:55 15.12.09
08:43:55 15.12.09
