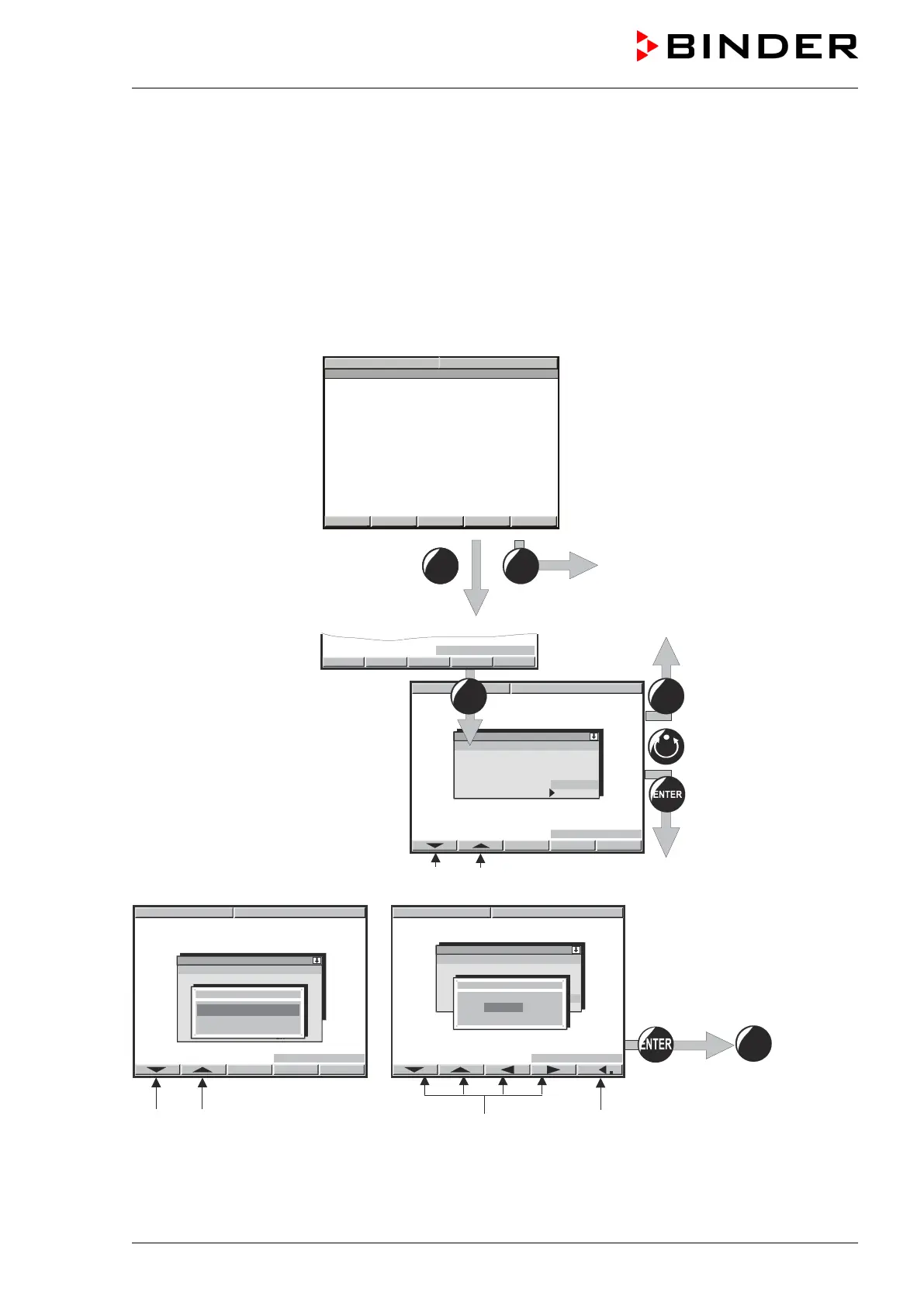

8. Manual Mode
In Manual Mode (HAND) you can enter a temperature set-point, a humidity set-point, the fan speed (0% to
100%) and the switching-state of up to 8 operation lines (non-functional with standard unit). All settings
remain valid in Manual Mode (HAND) until the next manual change, if the unit had been turned off or in
case of toggling to Idle Mode or Program Mode (AUTO).
8.1 Entering the set point values
W
X
08:43:55 15.12.09
CONFIG
VIEW->
PGM
TEMP
0.0
26.8
°C
HUMID
0.0
58.6
%rH
HAND
Idle Mode
No heating or refrigerating function,
no humidification.
Fan working at 50% rate (factory
setting).
Toggling to Manual Mode Change of page
Toggling between temperature set-point, humidity set-point, and fan speed
Arrow buttons to select the operation
lines (no function)
Arrow buttons to
enter the value
Button to move the decimal point
