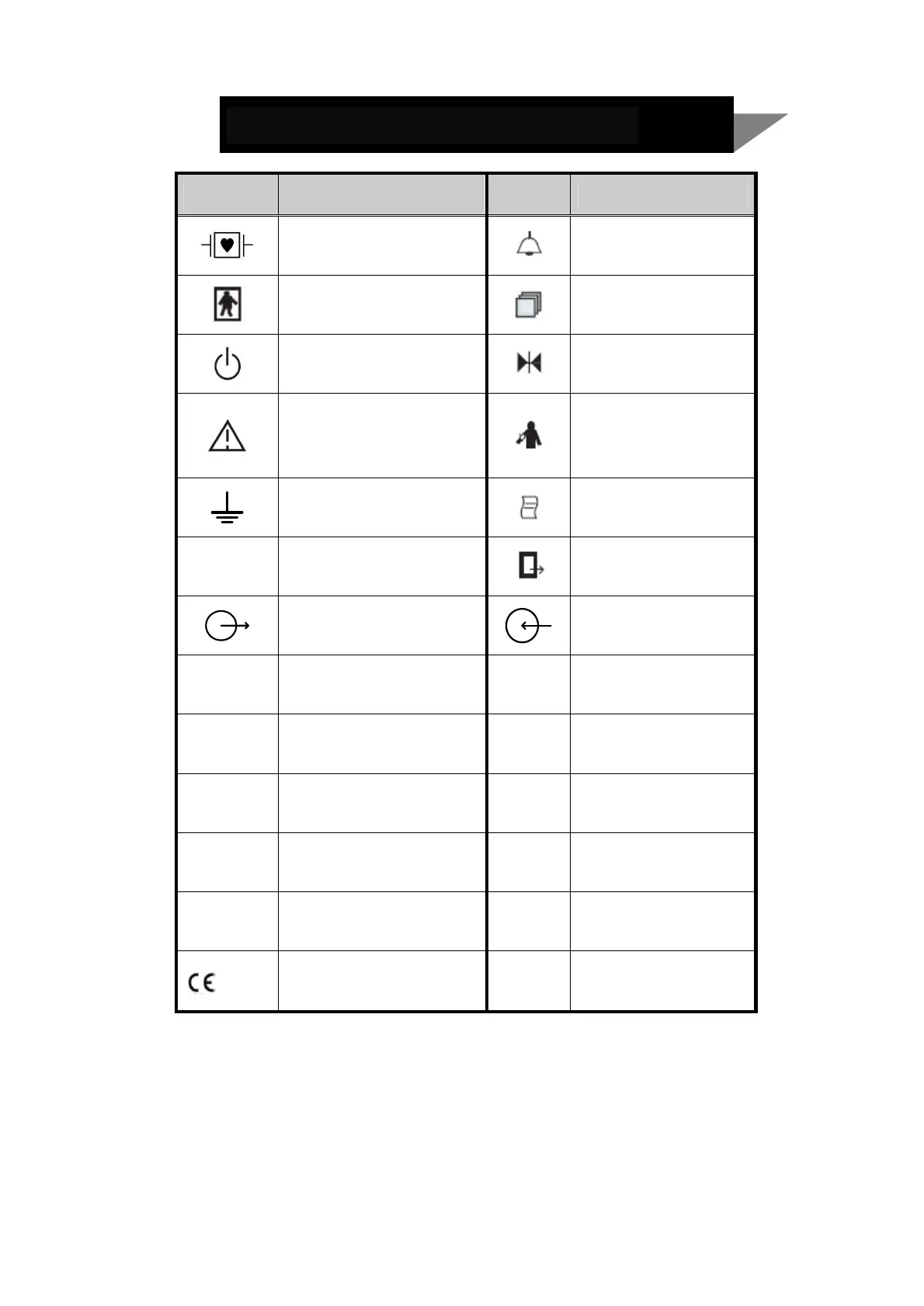

Bionics BPM-1010 - Symbols

24
Icon
Comments
Icon
Comments
Type CF Product,
Defibrillation protected
Alarm On/Off
Type BF Product,
Defibrillation protected
Screen Change
(Screen)
Power stand-by switch
Stop Waveforms
(Freeze)
Attention, consult
Accompanying
documents
Non Invasive Blood
Pressure Manual
Measurement(NIBP)
Ground
Start Printing (Printer)
I / O
SYSTEM POWER
On/Off
Initial Screen (Exit)
Signal Output
Signal Input
IBP
Invasive Blood Pressure
TEMP
Temperature
ECG/RESP
Electrocardiograph/
Respiration
SpO2
Oxygen Saturation
NIBP
Non Invasive Blood
Pressure
RS-232C
Port
Use for Program
Upgrade
LAN Port
Use for Central Monitoring
VGA Port
Screen transfer
SD Card
Trend Data save
IPX 1
Protection against vertically
falling drops of water (SpO2)
CE Mark
IPX 7
Protected against the water from immersion
between 15cm and 1m. (Temp, IBP)
Description of Product Symbols
