Changes in the chest impedance resulting from the patient’s respiration
is measured and displayed as a waveform and the values will appear on
the screen.
(1) How to Measure Respiration
◈ Respiration is measured with the ECG and HR etc., using the
ECG cable.
◈ Do not judge the patient’s condition only with the respiratory
value and the waveform.
Connect the ECG cable to the ECG/Res connection
terminal of the measurement module.
Attach the electrodes for respiration measurement by
referring to the figures below.

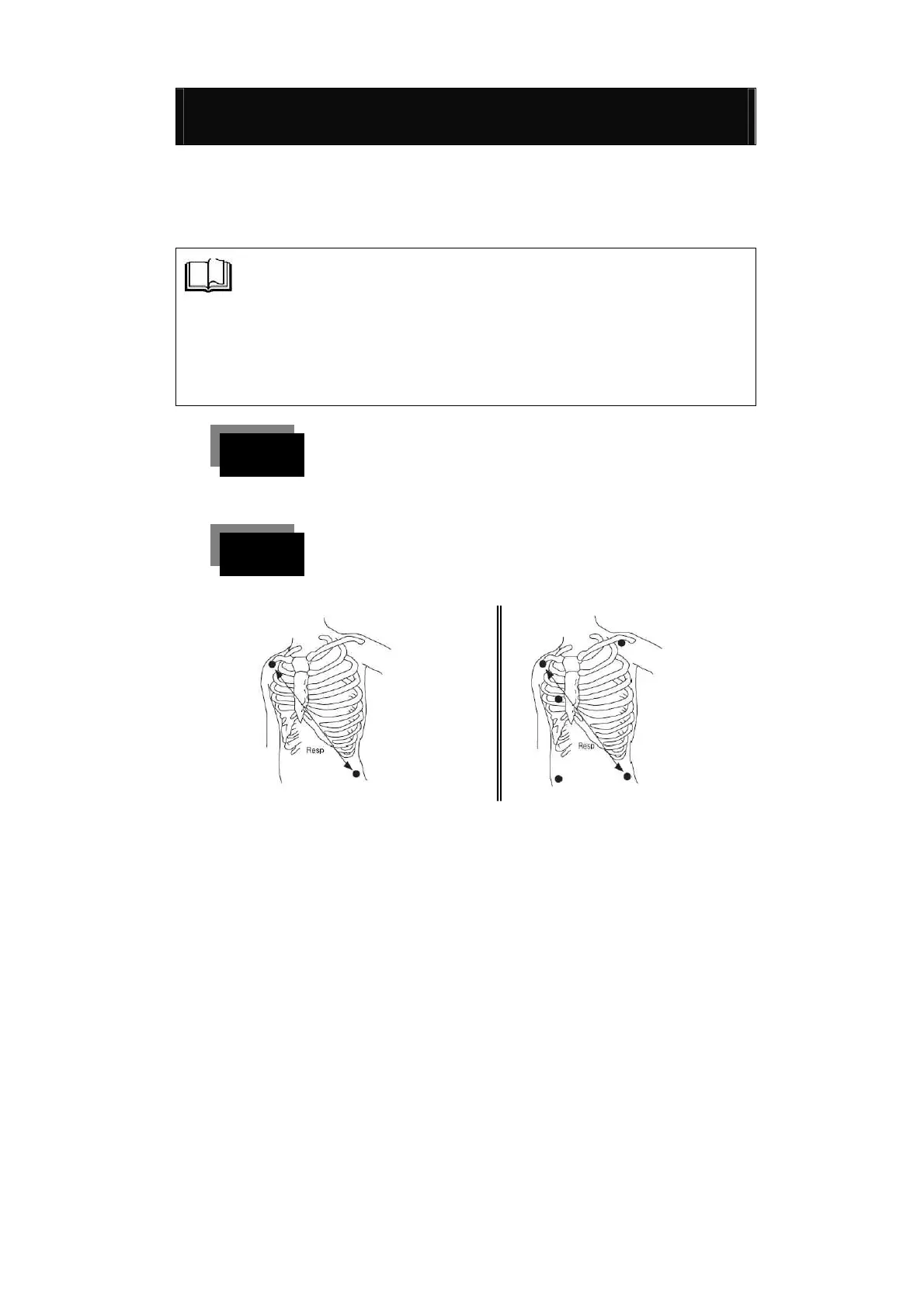

<Sites for 3 Leads attachment> <Sites for 5 Leads attachment>
To Next Page
