birddog P240 - Gamma and Black Level Adjustments; Gamma Settings

42

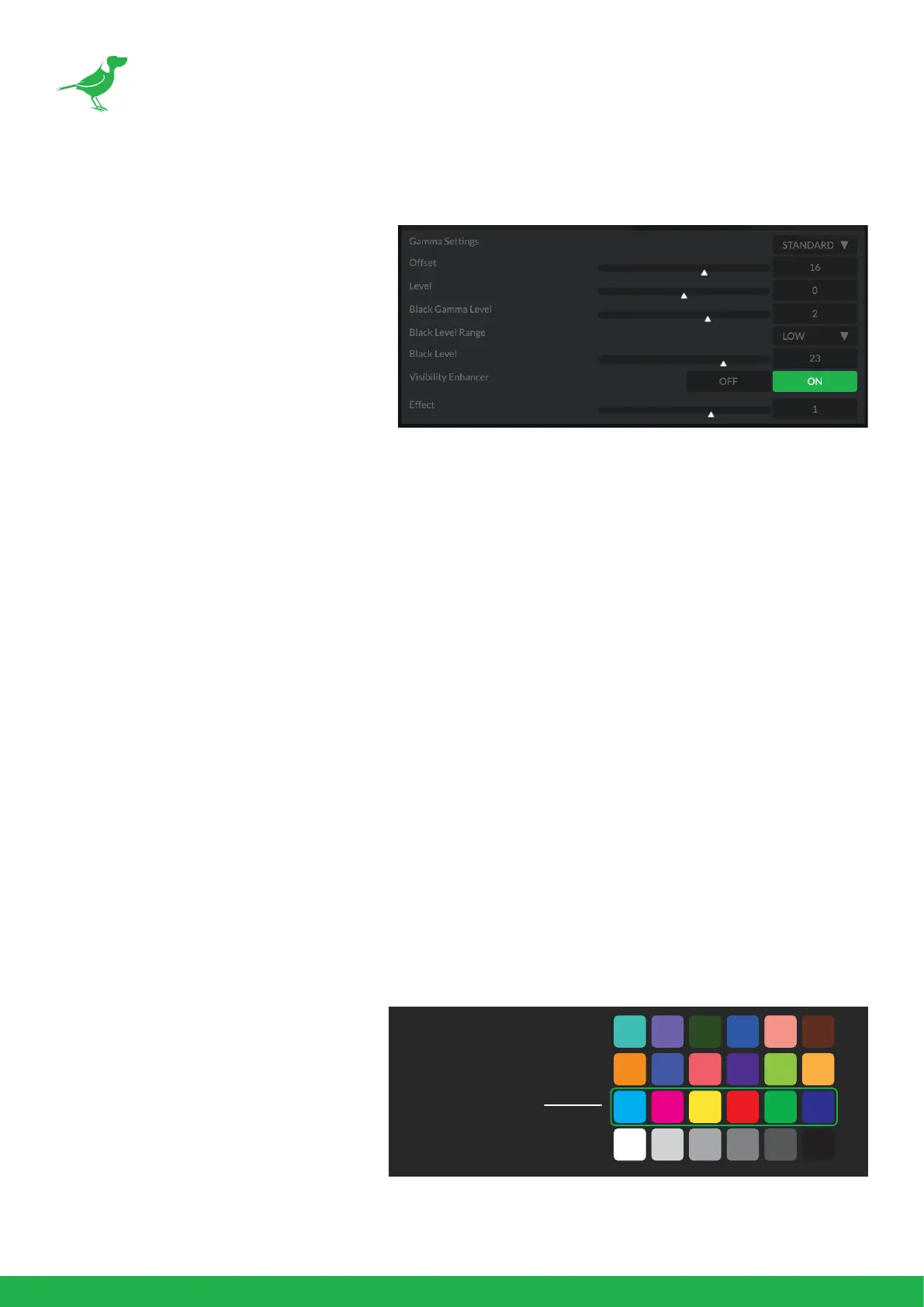

Gamma Tab
Gamma Mode
Standard: Standard setting (same as the
MOVIE setting on the camera).
Straight: This selects a straight GAMMA
curve.
Pattern: You can choose a gamma curve
from 512 patterns stored in the camera. You
can specify the a pattern from 512 patterns
using PATTERN and PATTERN FINE. PAT-
TERN denes the upper two digits of the
pattern, and PATTERN FINE denes the last
digit.
Oset
You can choose the oset of the output level of gamma curves. Choose a value from –64 to +64.
Level
Gamma level, you can choose a level value from -7 to +7.
Black Gamma
You can adjust the black gamma level to recreate gradation in the dark areas of the picture or to sup- press noise
with blackout. Choose a value from –7 to +7.
Black Gamma Range
You can adjust the brightness range for which BLACK GAMMA becomes eective. Choose from LOW, MIDDLE,
and HIGH. The range becomes small when LOW is chosen, and it becomes large when HIGH is chosen.
Black Level
You can adjust the master BLACK LEVEL. The Black Level is the brightness of the darkest part of an image. Choose
a value from –48 to +48.
Visibility Enhancer
Depending on the imaging scene, the Visibility Enhancer function makes the darker part of a camera image
brighter, and automatically correct brightness and contrast to show bright parts clearly.
Eect
The Eect setting sets the intensity of the Visibility Enhancer function. Values range from -3 to +3.
Using a Colour Chart
It is recommended to utilise a colour chart
or colour chip chart when adjusting the
Colour Matrix controls. These charts are
available readily and have colour chips for
each of the colours that the camera can
adjust. By utilising a colour chip chart you
are more easily able to see the impact of
any adjustment you are making.
Using a colour chip chart such as the
Datacolor SpyderCheckr can be benecial
to ne-tuning adjustments in the Colour
Matrix.
Colours adjustable
by Colour Matrix Control
