birddog P240 - RS485 Connection Setup

55

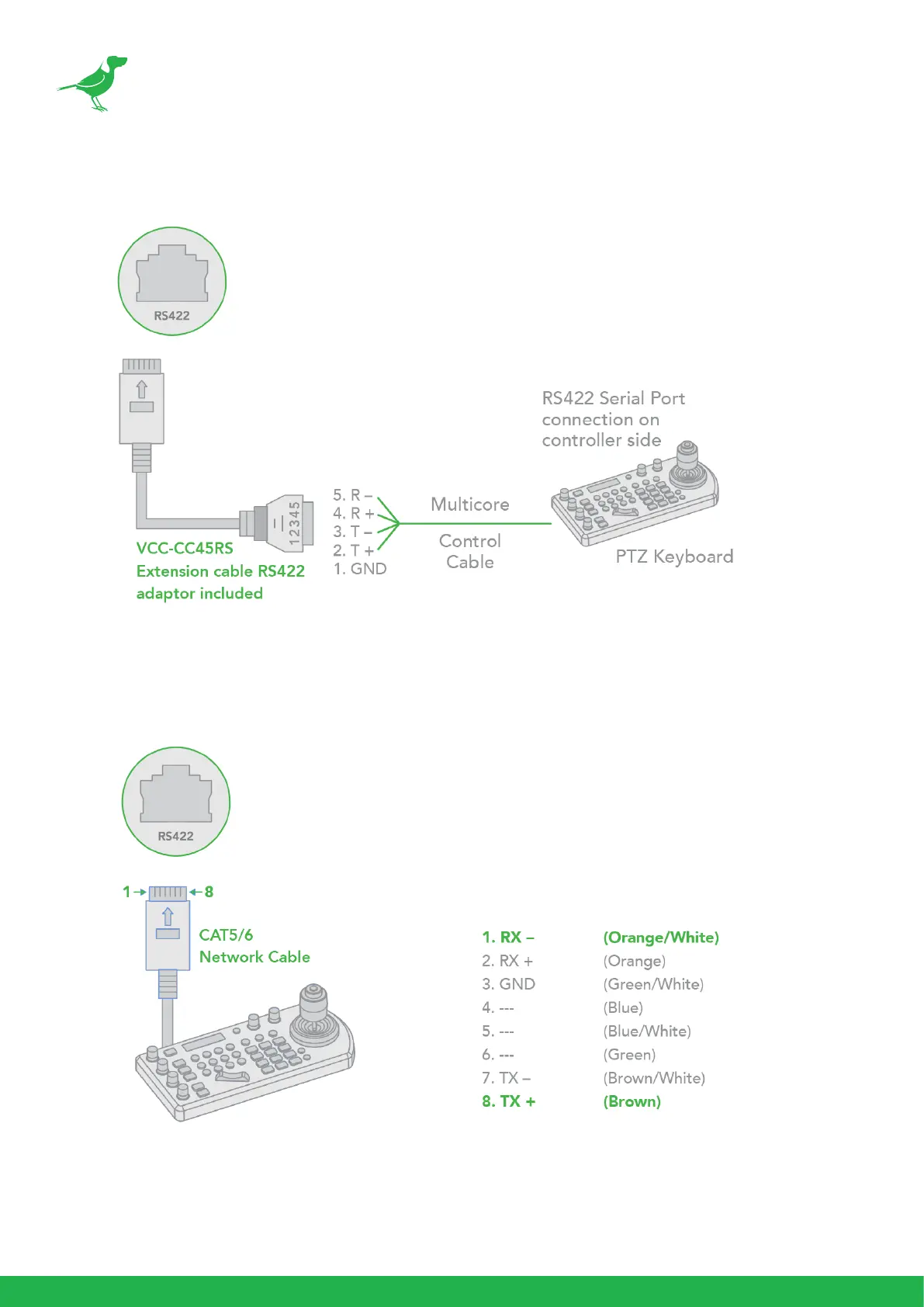

a. Use the included RJ45 to RS422 with a Phoenix adaptor to make an RS422 connection for your control
device.
b. Use a CAT5/6 T-568B cable for an RS422 direct connection between the camera and the controller by
following the pin denition below.
