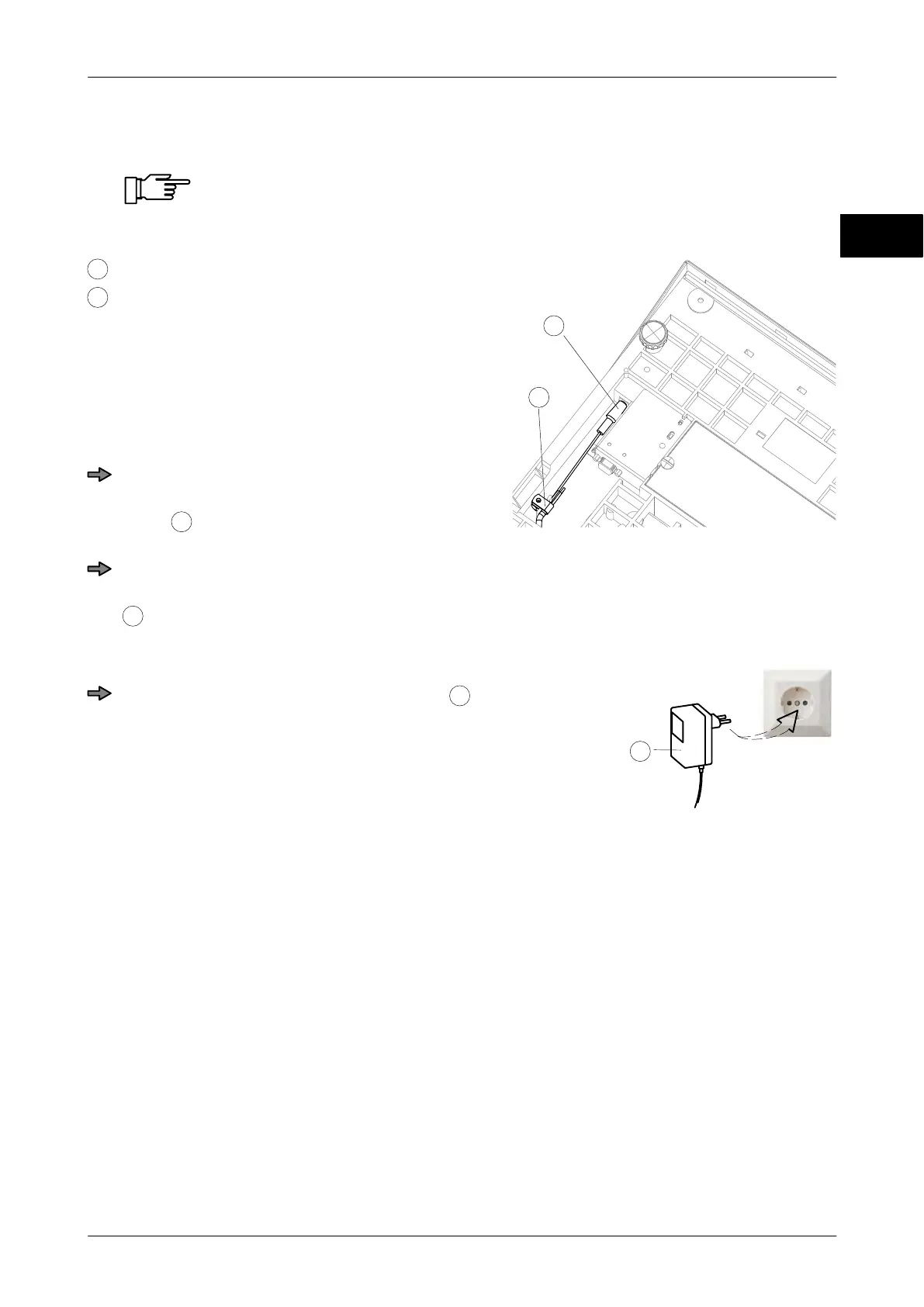

Operating instruction EC II Installation
4 − 5
6.107.98.5.01.44
4.2.5 Connection of direct plug−in transformer unit
_______________________________________________________________________
Protect mains cable against falling out with strain relief.
_______________________________________________________________________
Fig.: Cable connector
1
Strain relief
2
Connection:
Cable connector of direct plug−in transformer unit
or
Connection cable of external rechargeable battery
connect
Connect the cable connector of the direct
plug−in transformer unit to the bottom of the
scale
2
.
Protect the cable connector against falling
out or being pulled out with the strain relief
1
.
Fig.: Direct plug−in transformer unit
Connect direct plug−in transformer unit
3
.
When the direct plug−in transformer unit is
connected to the mains supply, the scale
starts with the display test.
