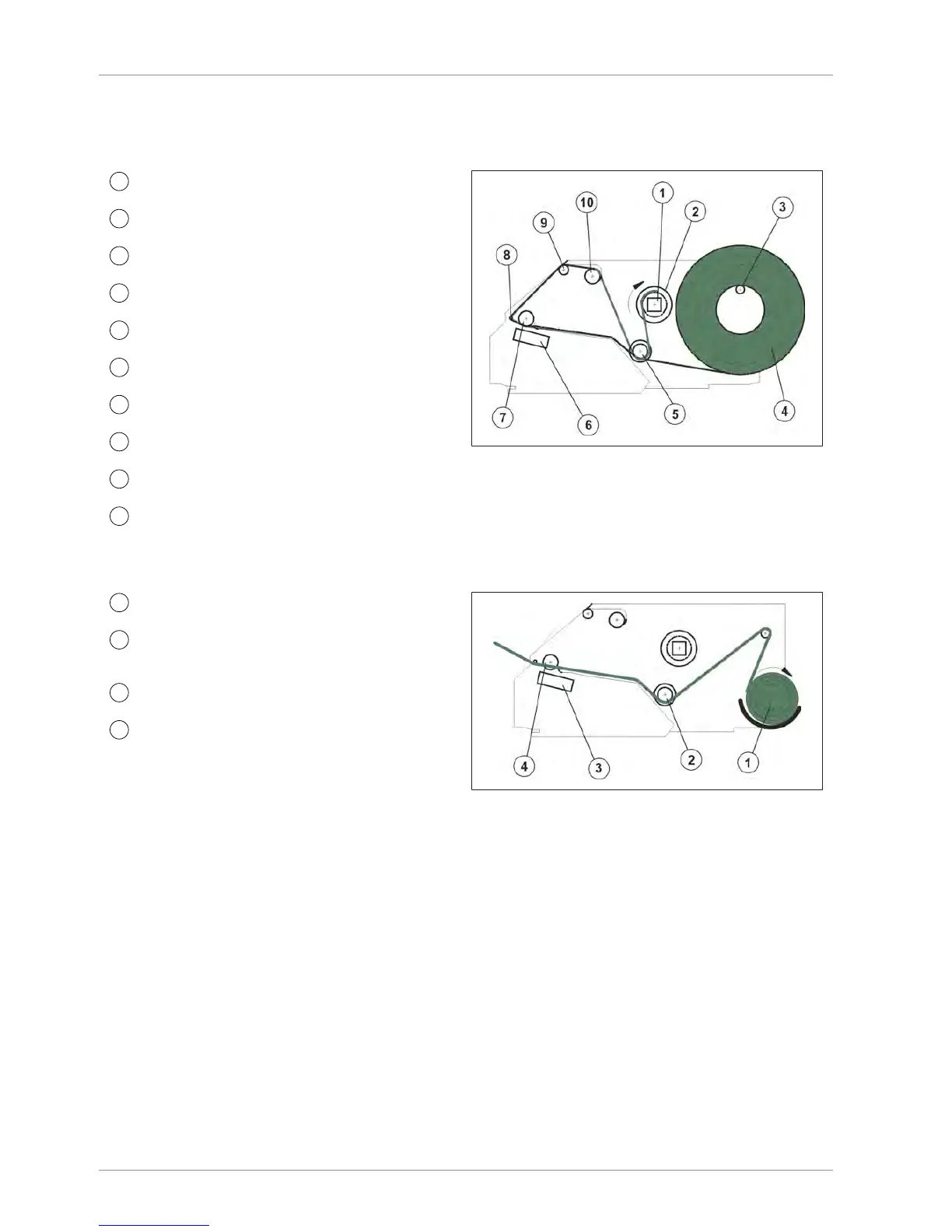

Paper feed SC II 100/200
Paper feed label printer with label paper
1
Take-up arbor for backing paper
Illustration30: Paper feed for label paper/SC
II 100/200
2
Collar
3
Takeup shaft
4
Label roll
5
Deflection pin with red adjustable ring
6
Print head
7
Print roller
8
Label detachment shaft
9
Deflection pin
10
Transport roller
Paper feed label printer with ticket paper
1
Ticket roll
Illustration31: Paper feed for ticket paper/SC
II 100/200
2
Deflection roller with red adjustable
ring
3
Print head
4
Print roller
