5.4.5 Paper feed

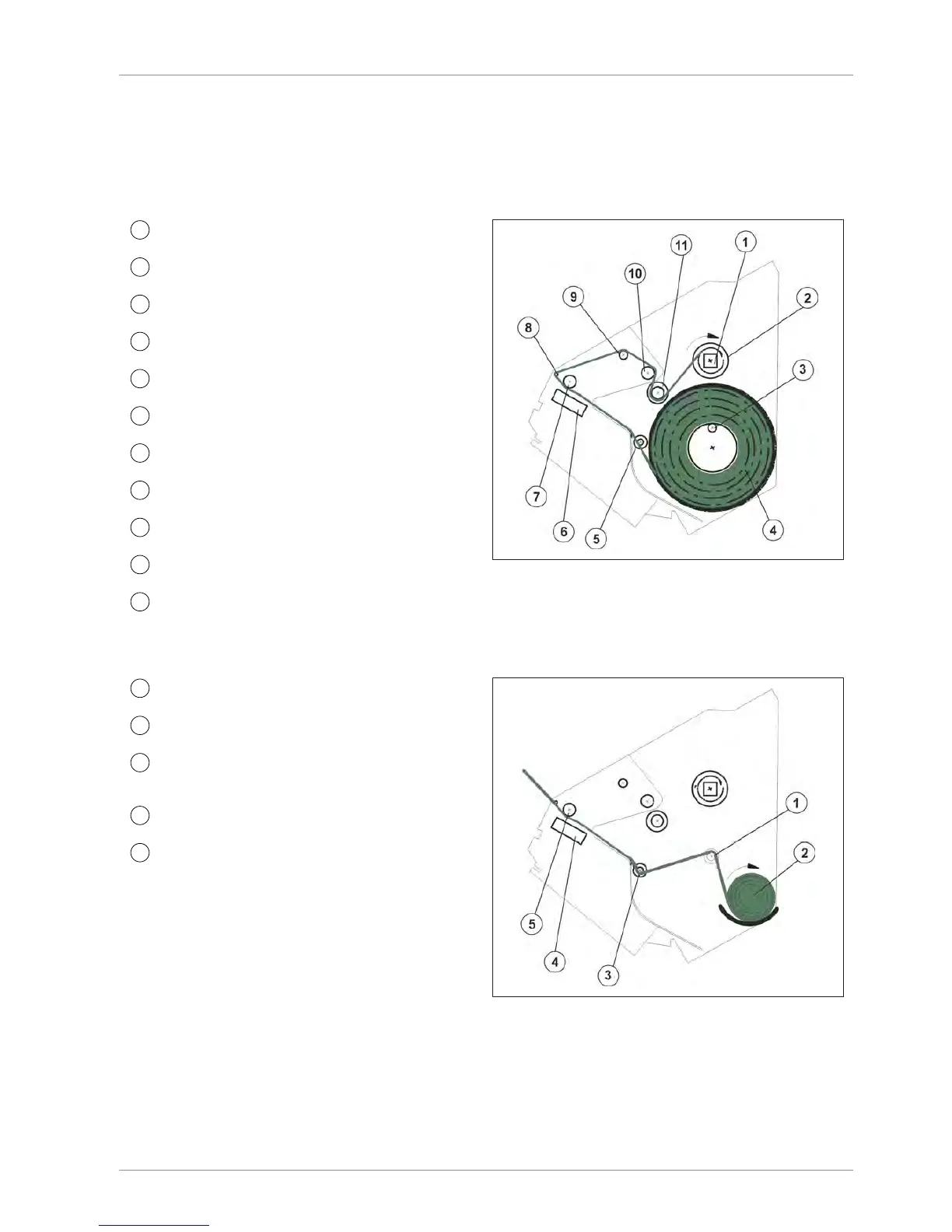

Paper feed SC II 800
Paper feed label printer with label paper
1
Take-up arbor for backing paper
Illustration28: Paper feed for label paper /
SC II 800
2
Collar
3
Takeup shaft
4
Label roll
5
Deflection pin with red adjustable ring
6
Print head
7
Print roller
8
Label detachment shaft
9
Deflection pin
10
Transport roller
11
Deflection roller with adjustable ring
Paper feed label printer with ticket paper
1
Takeup shaft
Illustration29: Paper track for ticket paper /
SC II 800
2
Ticket roll
3
Deflection roller with red adjustable
ring
4
Print head
5
Print roller

Bizerba SC II Series Specifications

General

Display	LCD
Readability	1 g / 2 g / 5 g
Material	Stainless steel
Power Supply	100-240 V AC, 50/60 Hz
Operating Temperature	-10°C to +40°C
Connectivity	Ethernet, RS232
Application	Retail, industrial
Platform Size	300 x 400 mm / 400 x 500 mm
