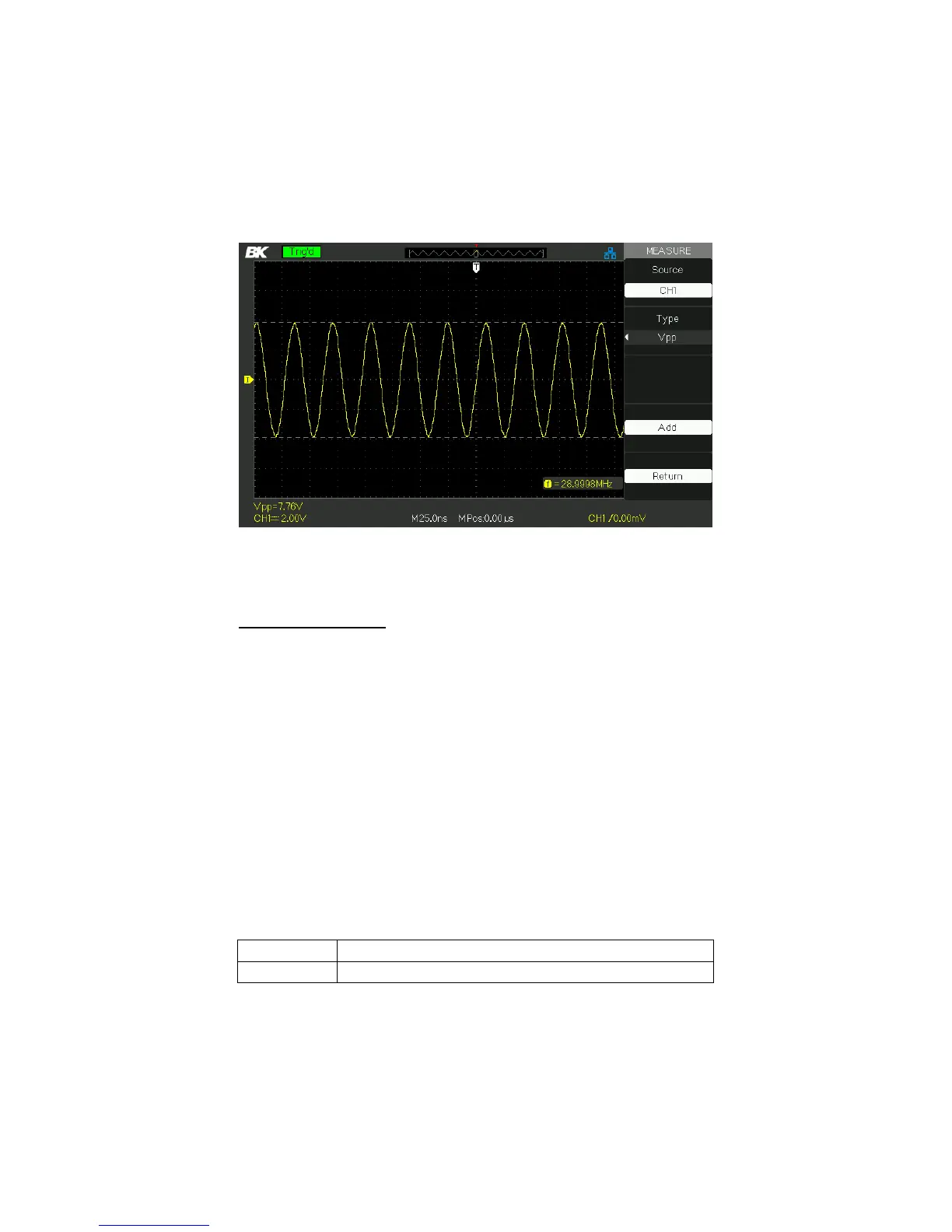

Figure 3.39 – Auto Mode
Auto Measurement
When you take automatic measurements, the oscilloscope does all the
calculation for you. The measurements use all the recorded points in the
memory, which are more accurate than measurements made using the
graticule lines or cursor measurements because these measurements are
confined to be made by only using points on the display and not all the
data points recorded by the oscilloscope.
Press the ‘MEASURE’ button for Automatic Test.
There are three auto measurement types: Voltage Measure, Time
Measure, and Delay Measure. There are a total of 32 measurement
parameters.
Table 3.37 – Auto Measurement Menu
Press this button to enter the Voltage measure menu.
