85
ΔV: Vertical space between Cursor A and Cursor B (Voltage
value between two cursors).

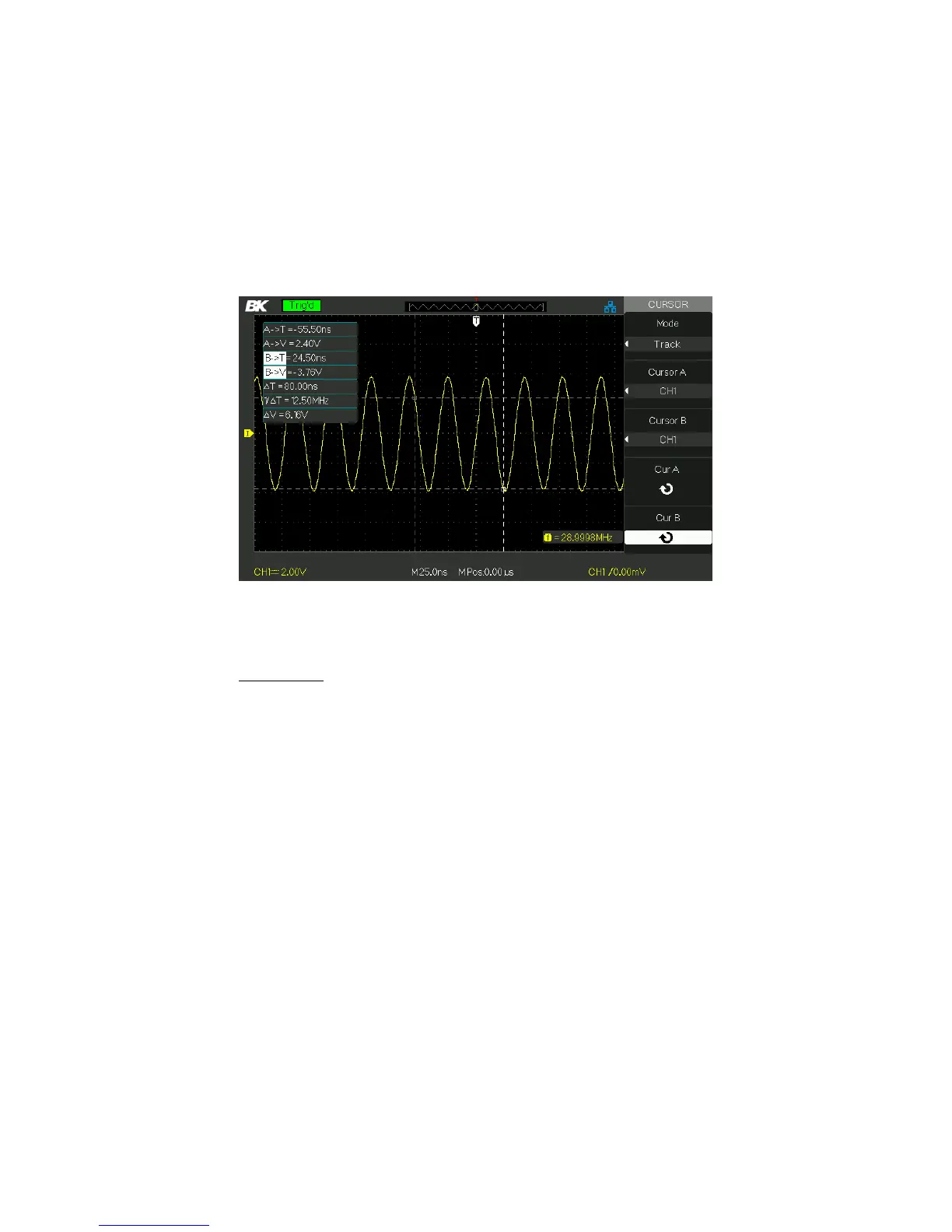

Figure 3.38 – Cursor Menu (Track)
Auto Mode
This mode will take effect with automatic measurements. The instruments
will display cursors while measuring parameters automatically. These
cursors demonstrate the physical meanings of these measurements.
To do auto cursor measurements, follow these steps:
1. Press the CURSOR button to enter “Cursor measure menu”.
2. Press the “Cursor Mode” option button to select “Auto”.
3. Press the “MEASURE” button to enter “Auto cursor measure
mode menu” to select the parameter that you want to
measure.
