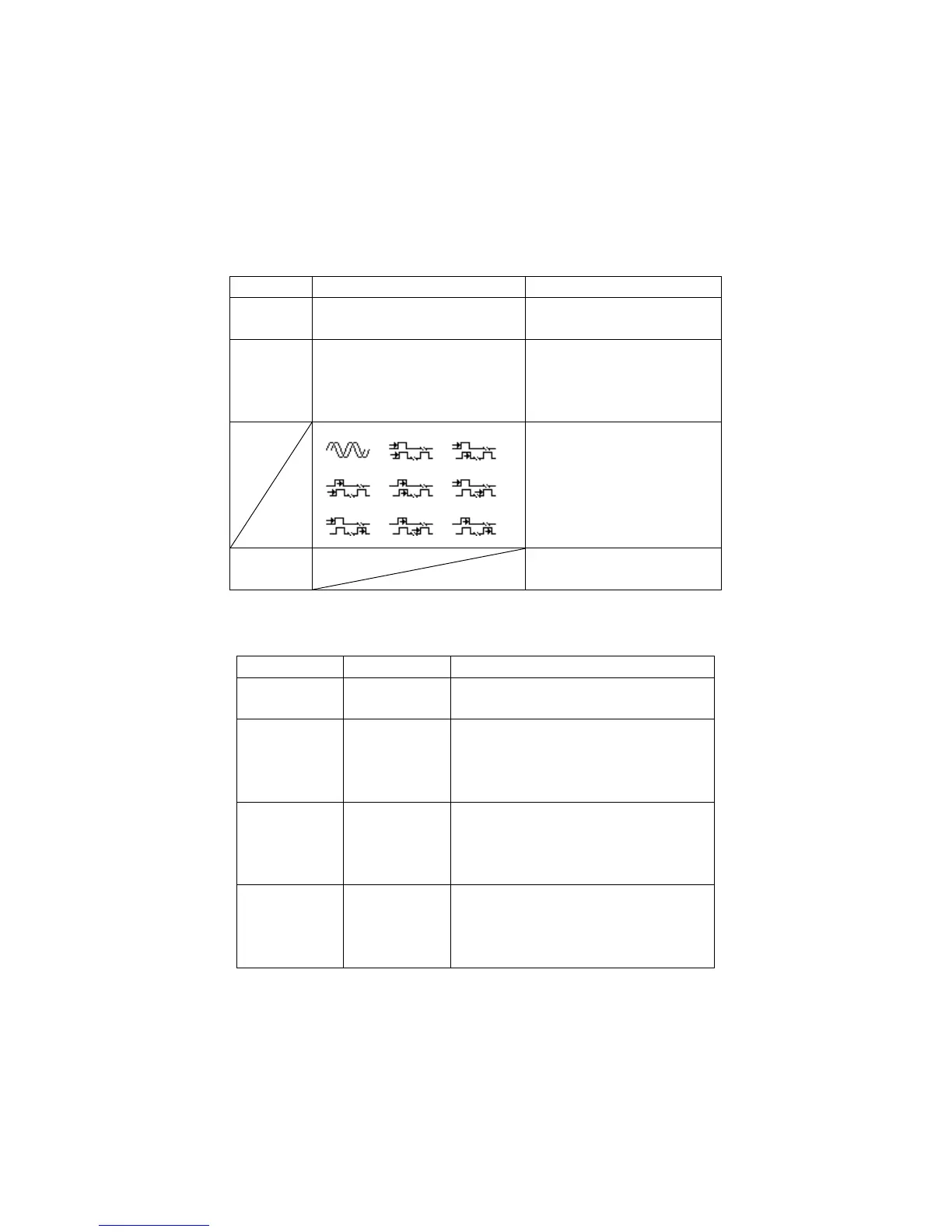

Table 3.40 – Auto Delay Measurement Menu
Option
Setting
Description
Source
CH1, CH2
Select any two input signal
source for Delay measure.
Type
Phase, FRR, FRF, FFR, FFF, LRR,
LRF, LFR, LFF
Press the “Type” button or
turn the “Universal” knob
to select Delay measure
parameter.
Display the corresponding
icon and measure value of
your selected Delay
measure parameter.
Return
Return to the first page of
auto measurement menu.
Table 3.41 – All Measurement Menu
Option
Setting
Description
Source
CH1
CH2
Select input signal channel.
Voltage
On
Off
Turn on the all measurement function
to measure voltage parameters.
Turn of the all measurement function
to measure voltage parameters.
Time
On
Off
Turn on the all measurement function
to measure Time parameters.
Turn of the all measurement function
to measure Time parameters.
Delay
On
Off
Turn on the all measurement function
to measure Delay parameters.
Turn of the all measurement function
to measure Delay parameters.
