90
Return
Return to the “All Measure main
menu”.

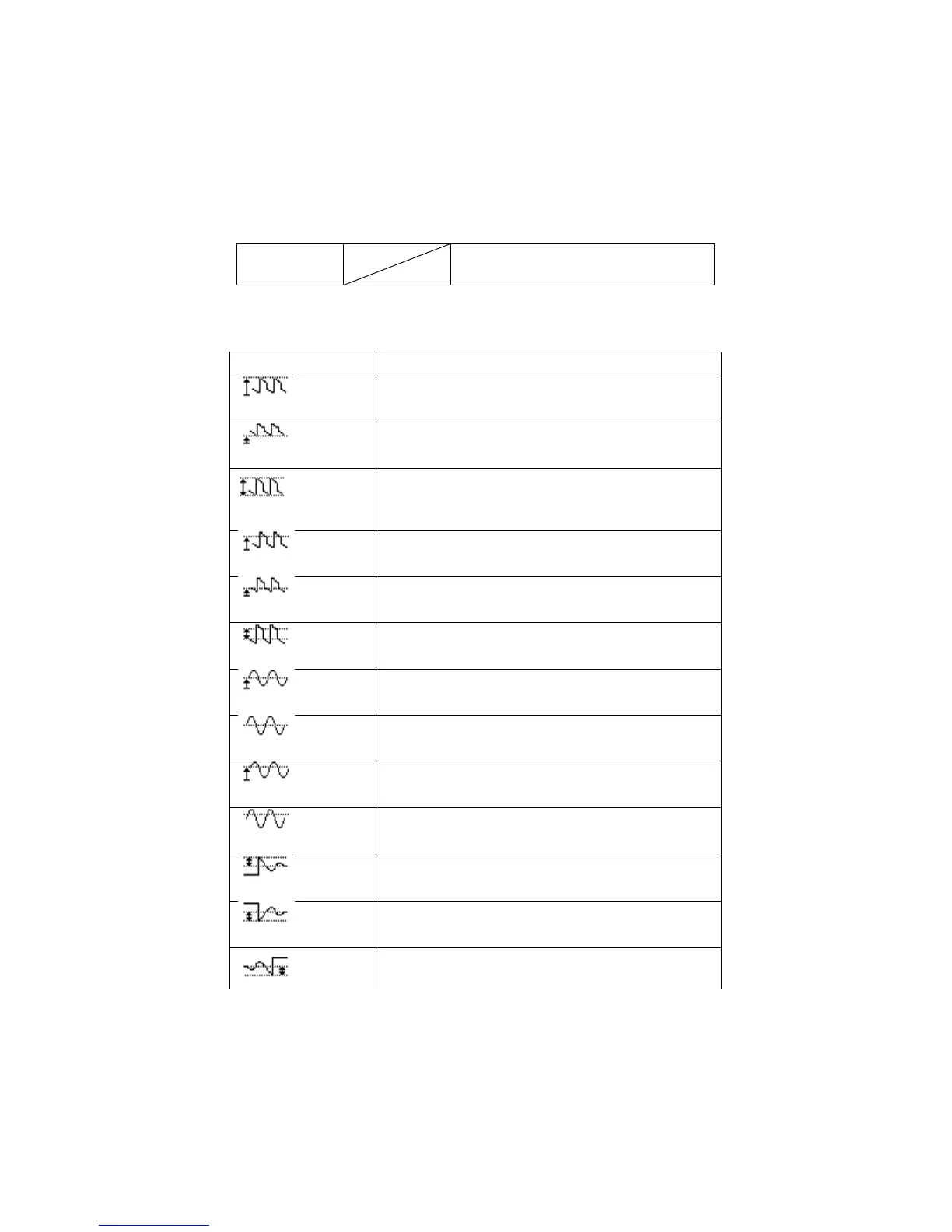

Table 3.42 Types of Measurements
Measure Type
Description
Vmax
The most positive peak voltage measured over the
entire waveform.
Vmin
The most negative peak voltage measured over the
entire waveform.
Vpp
Measures the absolute difference between the
maximum and minimum peaks of the entire
waveform.
Vtop
Measures the highest voltage over the entire
waveform.
Vbase
Measures the lowest voltage over the entire
waveform.
Vamp
Voltage between Vhig and Vlow of a waveform.
Vavg
The arithmetic mean over the first cycle in the
waveform.
Mean
The arithmetic mean over the entire waveform.
Crms
The true Root Mean Square voltage over the first
cycle in the waveform.
Vrms
The true Root Mean Square voltage over the entire
waveform.
ROVShoot
Defined as (Vmax-Vhig)/Vamp after the
waveform rising.
FOVShoot
Defined as (Vmin-Vlow)/Vamp after the
waveform falling.
Defined as (Vmin-Vlow)/Vamp before the
waveform rising.
