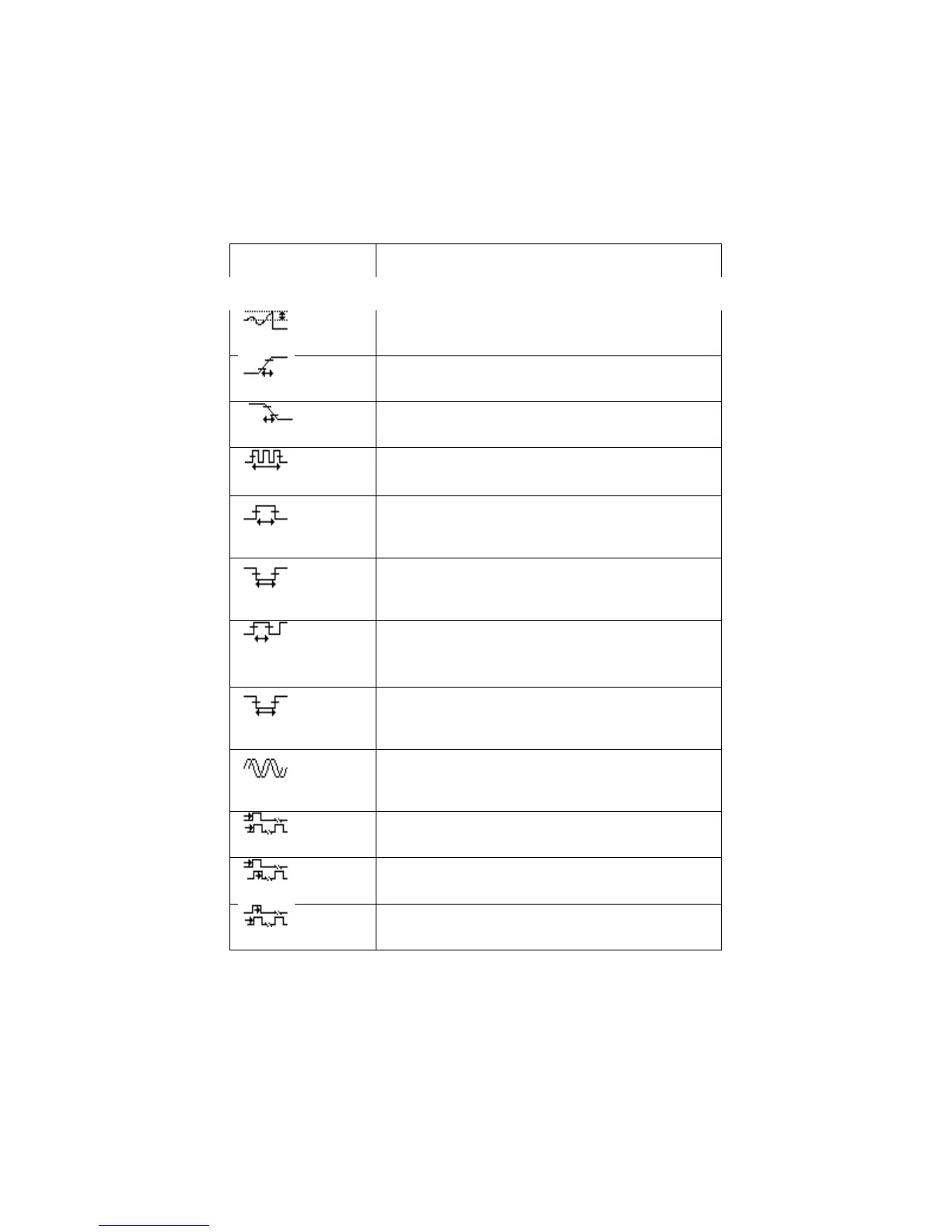

RPREshoot
FPREshoot
Defined as (Vmax-Vhig)/Vamp before the
waveform falling.
Rise Time
Measures the time between 10% and 90% of the
first rising edge of the waveform.
Fall Time
Measures the time between 90% and 10% of the
first falling edge of the waveform.
BWid
The duration of a burst.
Measured over the entire waveform.
+ Wid
+ Width Measures the time between the first rising
edge and the next falling edge at the waveform
50% level.
- Wid
-Width Measures the time between the first falling
edge and the next rising edge at the waveform 50%
level.
+ Duty
Measures the first cycle waveform.
Positive Duty Cycle is the ratio between positive
pulse width and period.
－Duty
Measures the first cycle waveform. Negative Duty
Cycle is the ratio between negative pulse width and
period.
Phase
The amount one waveform leads or lags another in
time. Expressed in degrees, where 360 degrees
comprise one waveform cycle.
FRR
The time between the first rising edge of source X
and the first rising edge of source Y.
FRF
The time between the first rising edge of source X
and the first falling edge of source Y.
FFR
The time between the first falling edge of source X
and the first rising edge of source Y.
