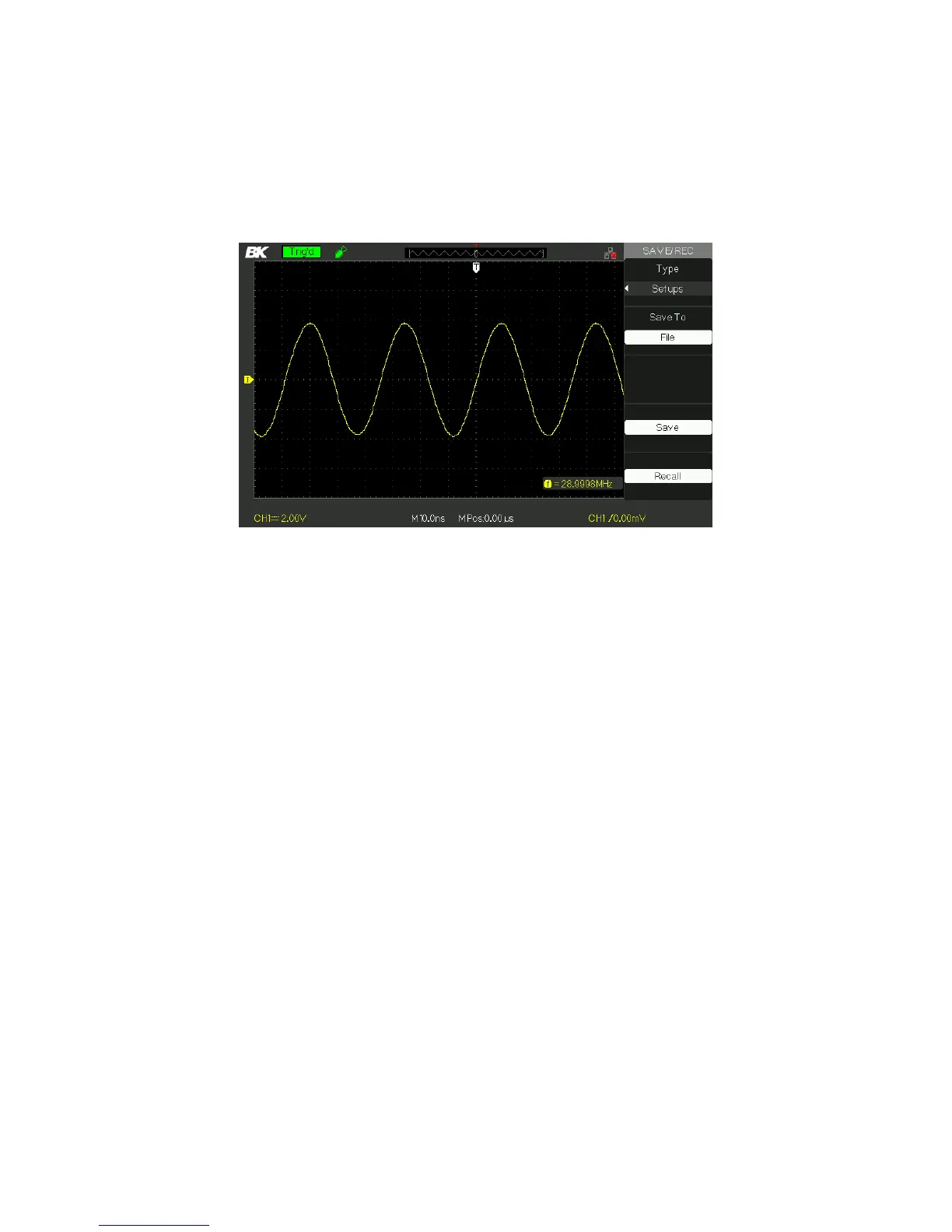

Figure 3.47 – Save Setup Menu
Save Setup to USB Flash drive:
For example: Save setup that set waveform display type to “Dots”
to USB flash drive.
1. Press the “SAVE/RECALL” button to select “Setups”.
2. Insert USB flash drive to USB host port of the
oscilloscope and wait that the oscilloscope has initialized
USB flash drive (about five seconds).
3. Press the “Save to” option button to select “file”.
4. Press the “Save” option button then you’ll go into the
Save/Recall interface.
5. Press the “New Dir.” button to create a new folder
6. Press the “Del folder” option button to delete a folder
7. Press the “New file” option button to create a new file
8. Press the “Del file” option button to delete a file
9. Press “the next page” option button and press the
“Rename” option button to modify the name of the file
or the folder.
10. Turn the “Universal” knob to select the folder and press
the “Confirm” option button and you save the set to the
USB drive.
