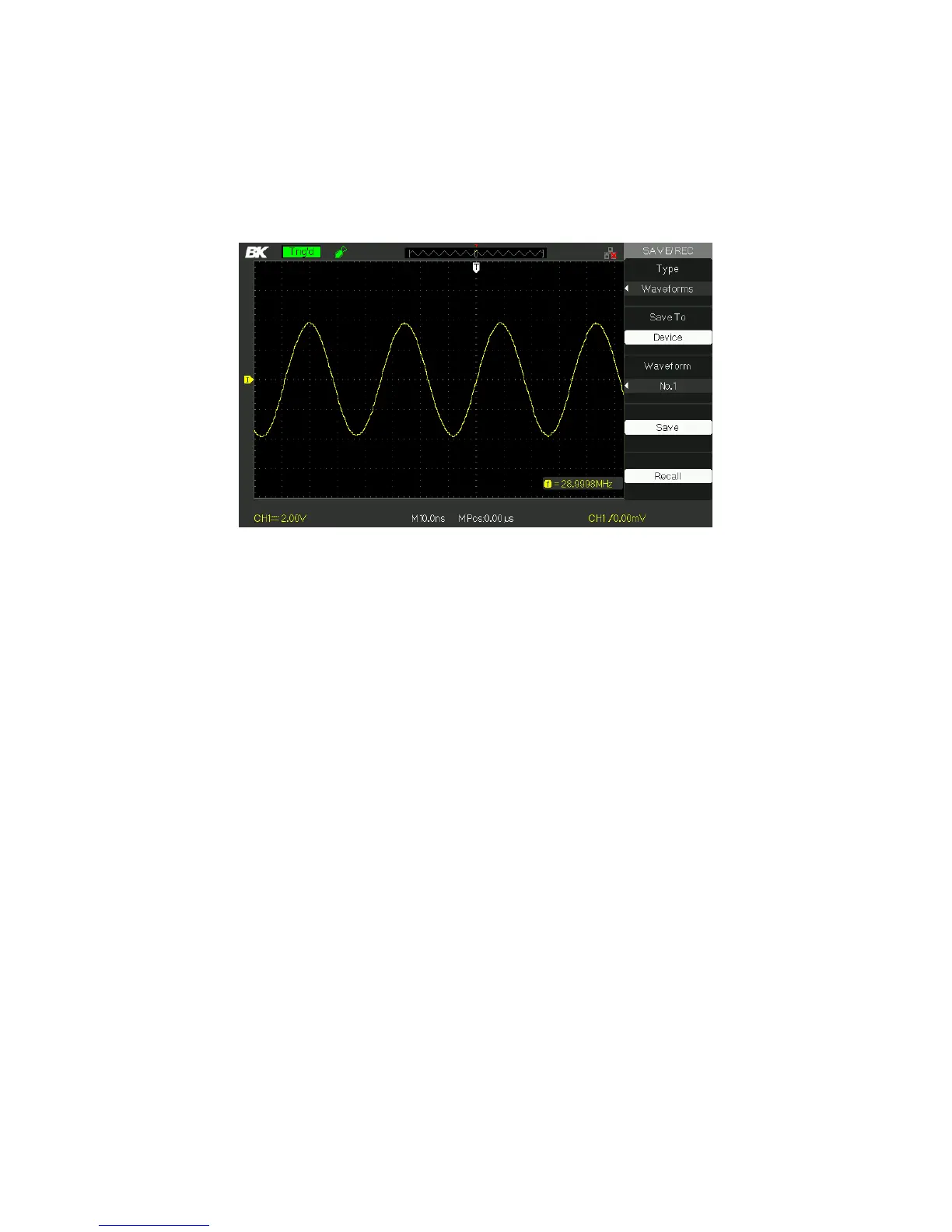

Figure 3.49 – Save Waveform Screen (To Internal Storage)
To save waveforms in internal memory, follow the steps below:
1. Input a sine signal to channel 1 and press the “Auto”
button.
2. Press the “SAVE/RECALL” button to enter
“SAVE/RECALL” display menu.
3. Press the “Type” option button to select “Waveforms”.
4. Press the “Save to” option button to select “Device”.
5. Press the “Waveform” option button or turn the
“Universal” knob to select “No.1”.
6. Turn the “Volts/div” knob or “Time/div” knob to adjust
the waveform that you want.
7. Press the “Save” option button.
To recall waveforms, follow the steps below:
1. Press the “SAVE/RECALL” button to enter
“SAVE/RECALL” display menu.
2. Press the “Type” option button to select “Waveforms”.
3. Press the “Save to” option button to select “Device”.
4. Press the “Waveform” option button or turn the
“Universal” knob to select “No.1”.
5. Press the “Recall” option button.
