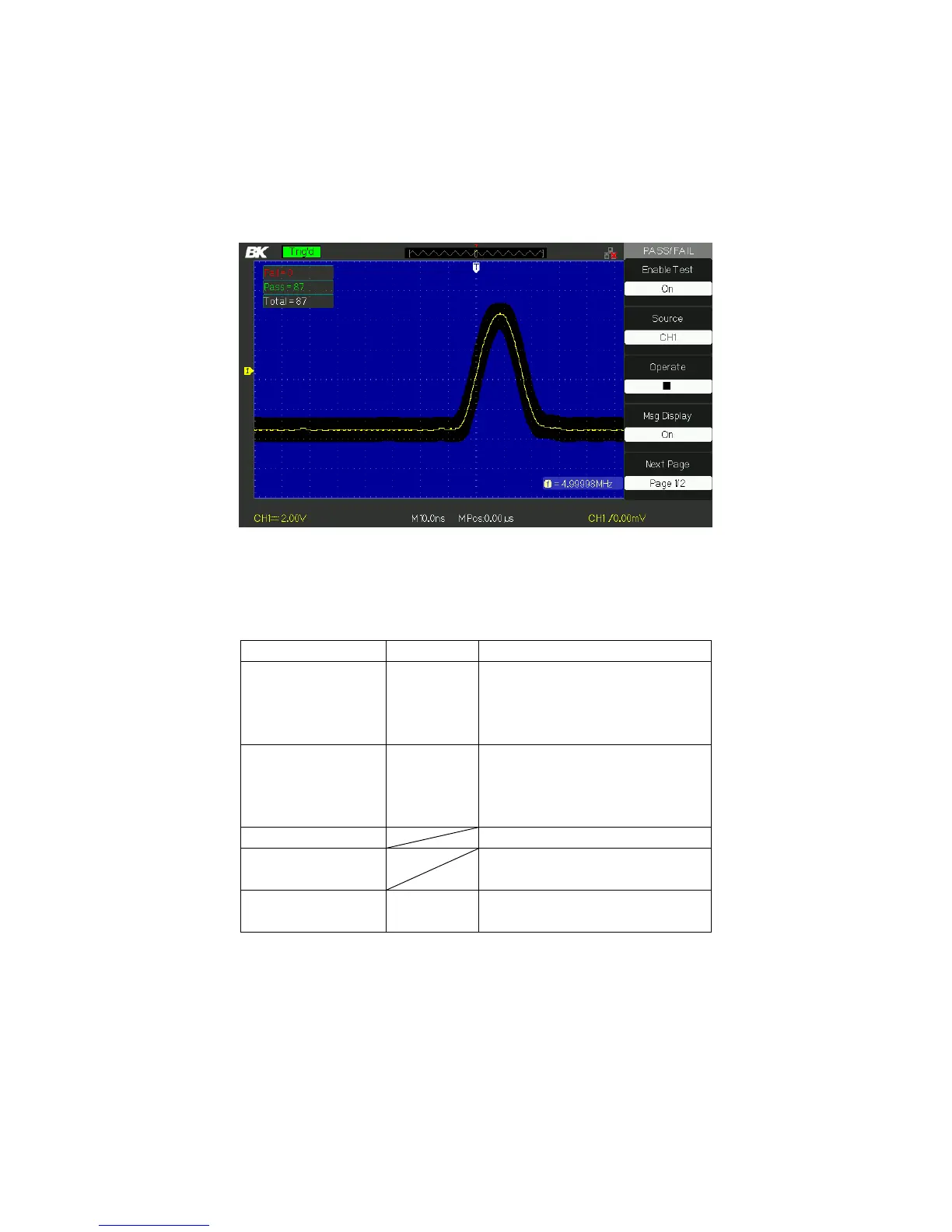

Figure 3.63 – Pass/Fail Screen 1
Table 3.57 – Pass/Fail Menu 2
Option
Setting
Description
Output
Pass
Fail
Output signal when pass
condition is detected.
Output signal when fail condition
is detected.
Stop On Output
On
Off
When On, stops test when output
occurs.
When Off, continues test when
output occurs.
Mask Setting
Enter the “Mask Setting menu”.
Return
Return to the Pass/Fail main
menu.
Next Page
Page 2/2
Return to the first page of
Pass/Fail menu.
