122

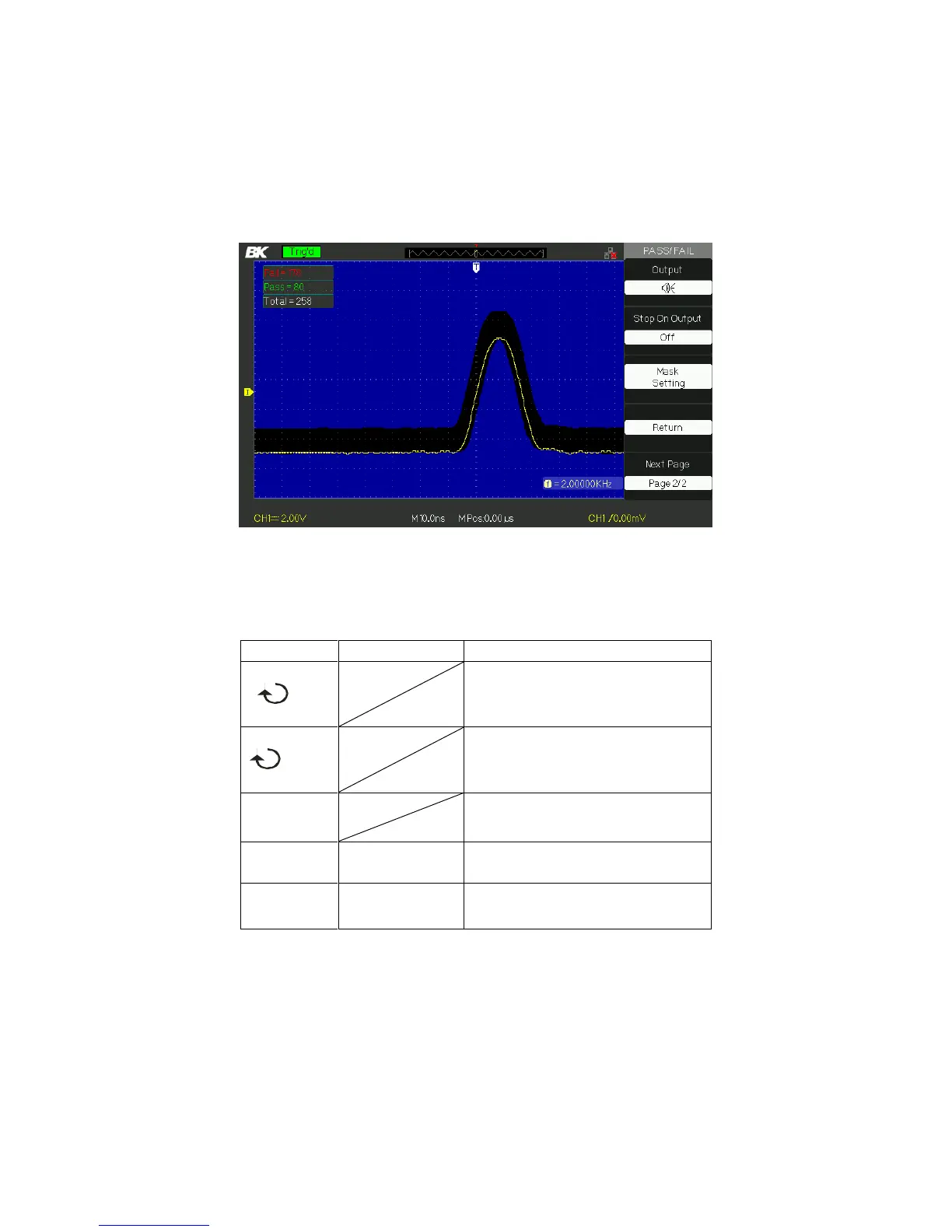

Figure 3.64 – Pass/Fail Screen 2
Table 3.58 – Mask Settings Menu 1
Option
Setting
Description
X Mask
xdiv
Turn the “Universal” knob to set the
range of horizontal clearance to the
waveform. <0.04div-4.00div>
Y Mask
ydiv
Turn the “Universal” knob to set the
range of vertical clearance to the
waveform. <0.04div-4.00div>
Create
Mask
Create a test mask according to the
above clearance.
Location
Internal
External
Select position to store created
mask.
Next Page
Page 1/2
Enter the second page of “Mask
Setting menu”.
