133
LAN Configuration
Do the following steps to set the oscilloscope to communicate with PC via
LAN:
1. Connect the oscilloscope to your local area network using the network
cable.
2. Press the Utility button on the front panel to enter the UTILITY
function menu.
3. Press the I/O Set softkey to enter the I/O SET function menu.
4. Press the LAN softkey to enter the LAN setting interface, see the
picture below:

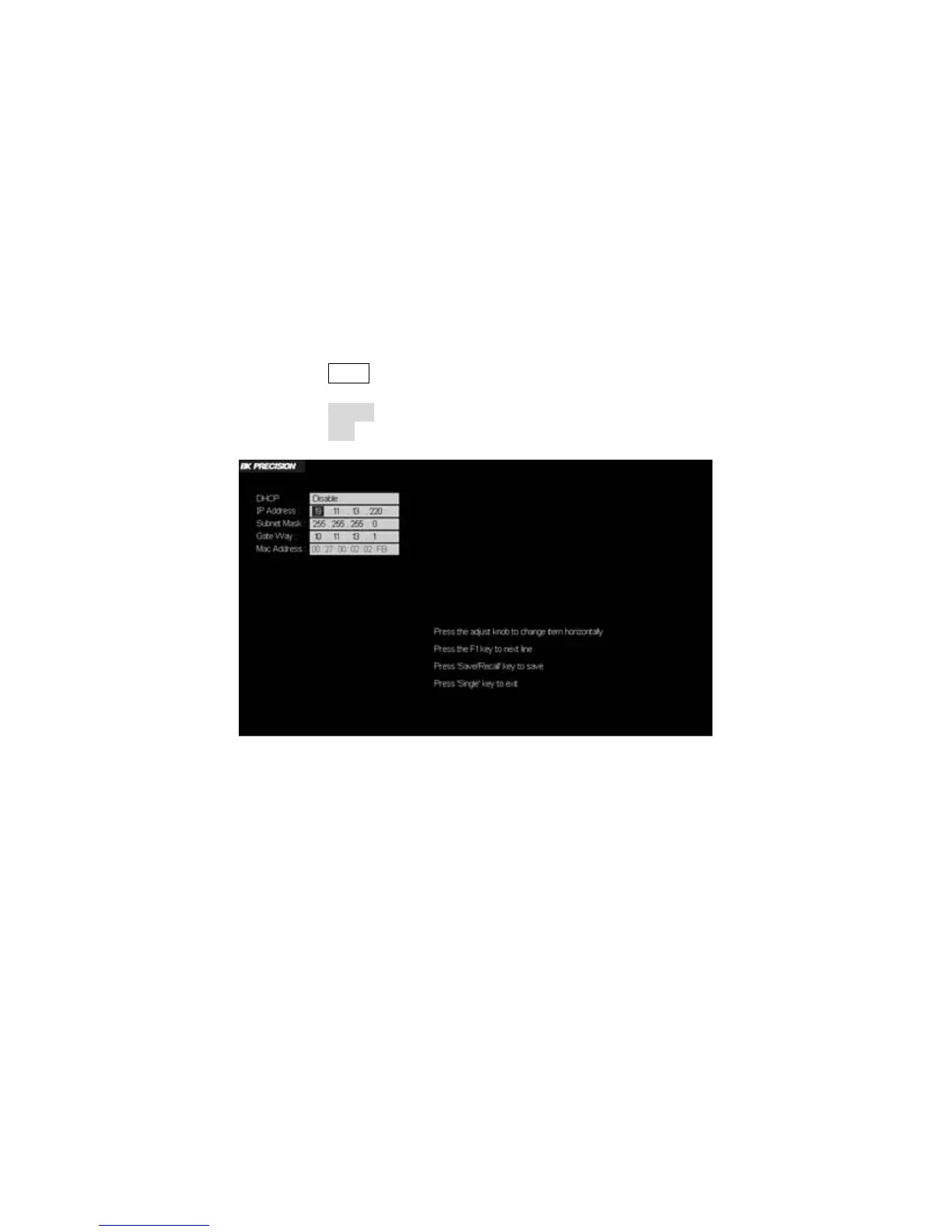

Figure 3.73 – LAN Configuration
Note: To move to the right, press the Universal Button. To change the
values of the menus rotate the Universal Button and finally to jump to the
next line press the button below the Menu On/Off button (top right corner
of the screen.
5. Press the button below the Menu On/Off button (top right corner of
the screen) continually to go to the DHCP line; then turn the
Universal Knob to select Enable or Disable (it also works to change
the numbers on the rest of options)
