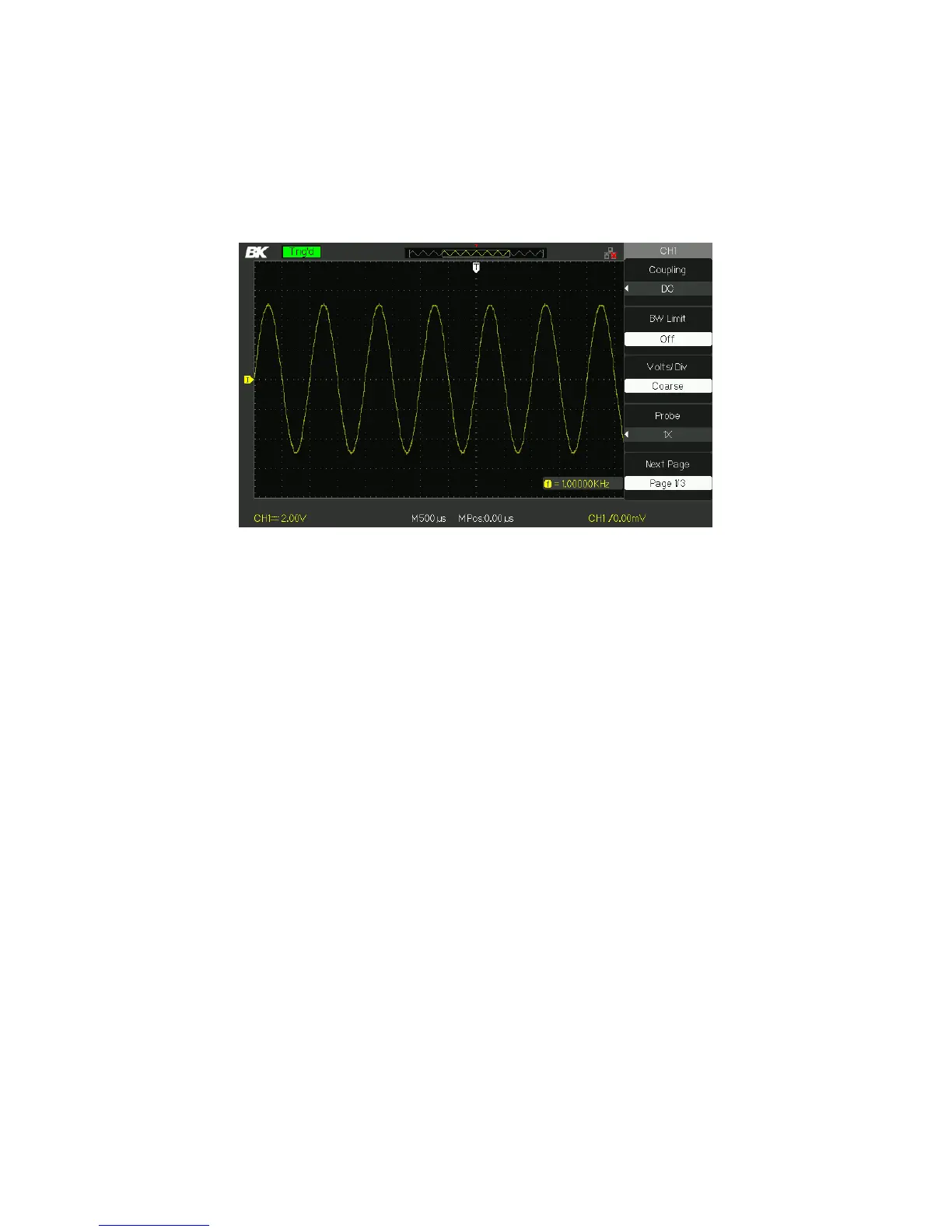

Figure 3.6 – DC Coupling

• Press “CH1”→“Coupling”→“GND”, Set to GROUND

mode. This disconnects the input signal.

2. Bandwidth Limiting

Take CH1 for example:

• Press “CH1”→“BW Limit”→ “On”, and bandwidth will be

limited to 20 MHz.

• Press “CH1”→“BW Limit”→ “Off”, and bandwidth limit

will be disabled.
