30

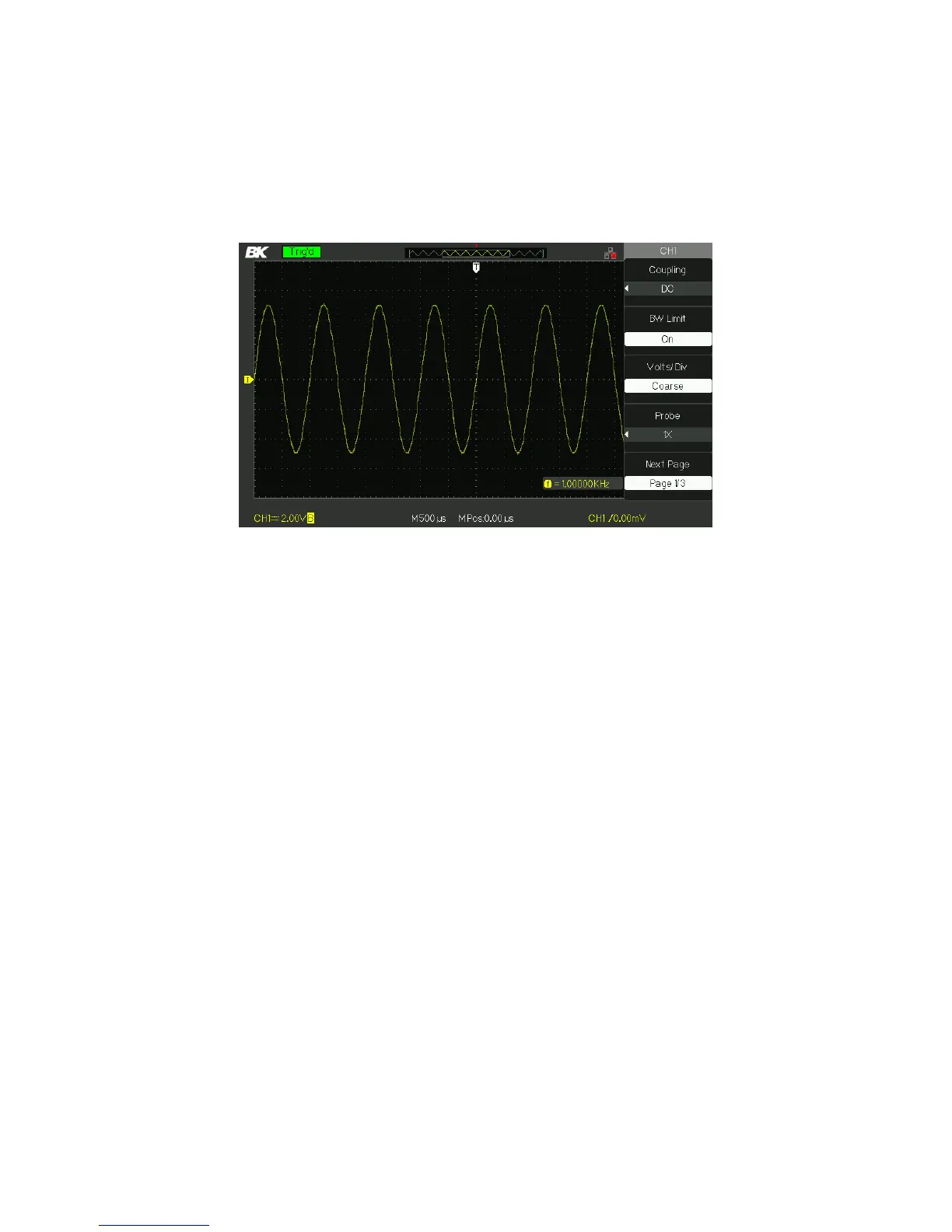

Figure 3.7 – Bandwidth Limit
3. Volts/Div Settings
Vertical scale adjust have Coarse and Fine modes, Vertical
sensitivity range of 2 mV/div – 10 V/div.
Take CH1 for example:
• Press “CH1”→“Volts/Div”→“Coarse”. It is the default
setting of Volts/Div, and makes the vertical scaling in a 1-
2-5-step sequence from 2 mV/div, 5 mV/div, and 10
mV/div to 10 V/div.
• Press “CH1”→ Volts/Div”→ Fine”. This setting changes
the vertical control to small steps between the coarse
settings. It will be helpful when you need to adjust the
waveform vertical size in smaller steps.
