BK Precision 2190E User Manual

31

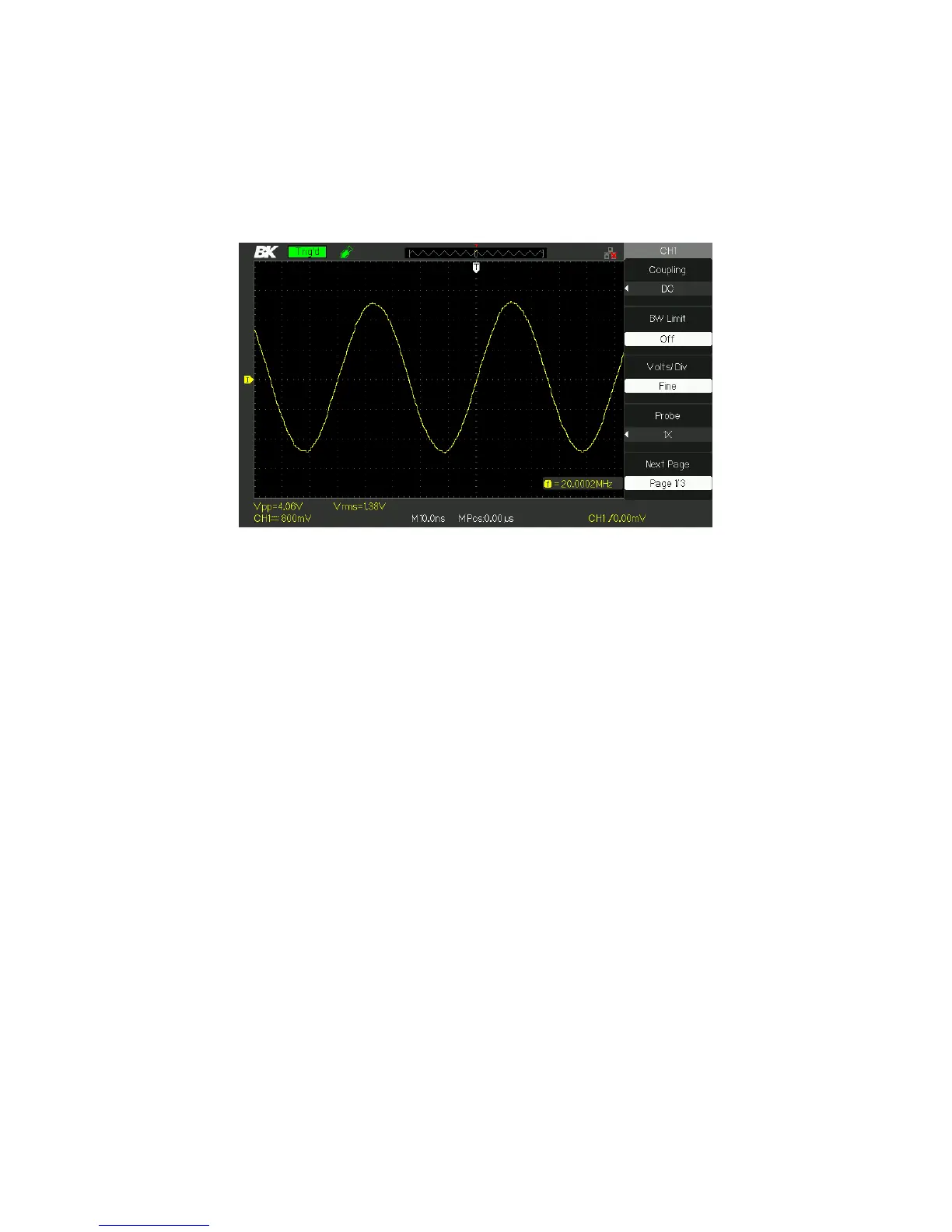

Figure 3.8 – Coarse/Fine Control
4. Setting Probe Attenuation
In order to set the attenuation coefficient, you need to specify it
in the channel operation Menu. If the attenuation coefficient is
10:1, the input coefficient should be set to 10X, so that the
Volts/div information and measurement testing is correct.
Take CH1 for example, when you use the 100:1 probe:
• Press “CH1”→“Probe” →“100X”
