BK Precision 4050B Series User Manual

103
Example 1: Generate a Sine Waveform
Generate a sine waveform with 1 MHz frequency, 5 Vpp amplitude and 1 V DC offset.
⚫ Set the frequency.
1. Press Waveforms → Sine →Frequency/Period and choose Frequency, which will display in
a blue color.
2. Input ‘1’ from the keyboard and choose the unit ‘MHz’. The frequency will be set to 1 MHz.
⚫ Set the Amplitude.
1. Press Amplitude/HighLevel to choose Amplitude which will display in a blue color.
2. Input ‘5’ from the keyboard and choose the unit ‘Vpp’. The amplitude will be set to 5 Vpp.
⚫ Set the DC Offset.
1. Press Offset/LowLevel to choose Offset which will display in a blue color.
2. Input ‘1’ from the keyboard and choose the unit ‘Vdc’. The offset will be set to 1 V DC.

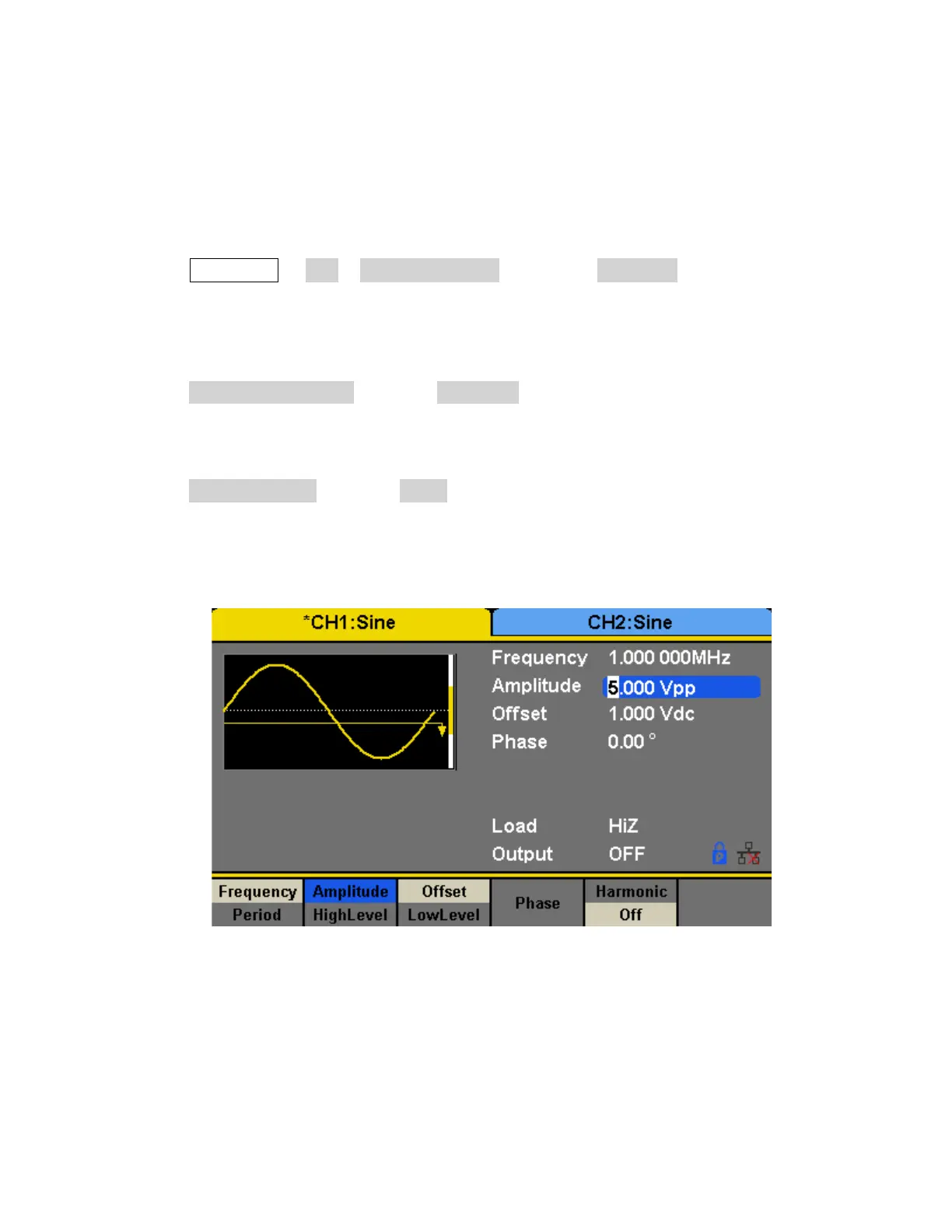

When the frequency, amplitude and offset are set, the waveform generated is shown in Figure
74.
Figure 74 - Generate a Sine Waveform
