3.3 Configure Waveform Output
Configure Waveform Shape
The instrument can generate many standard as well as arbitrary waveforms. There is a
dedicated waveform key on the front panel that will allow the user to select between different
waveform shapes to output, as listed in Table 4.
Waveforms
Sine
Square
Ramp
Pulse
Noise
DC
Arbitrary

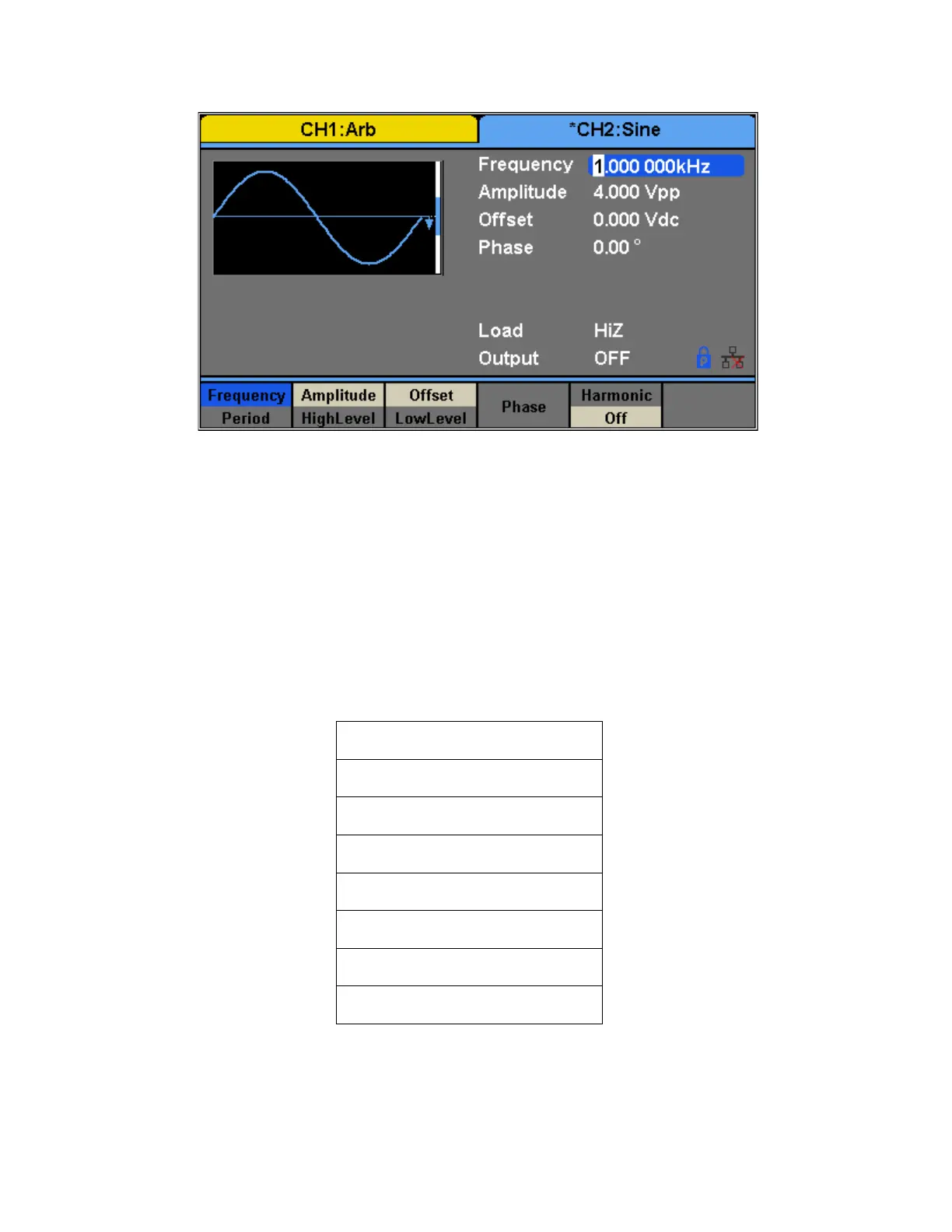

Figure 4 - Channel 2 Selected
Table 4 - Waveforms
