19

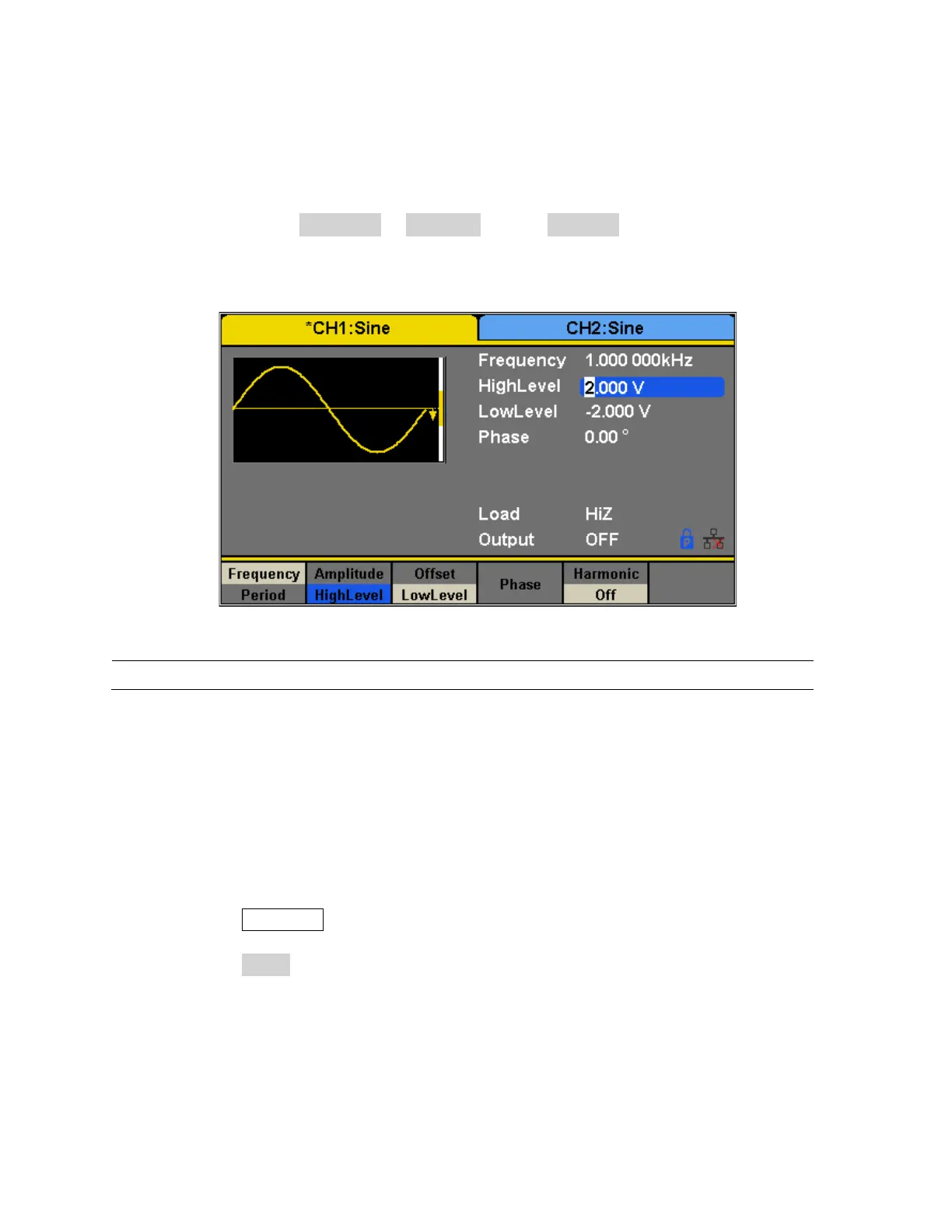

User-Defined High and Low Level
The user has the option to adjust the high and low level of the waveform. To do this, toggle the
menu function key from Amplitude to HighLevel and the LowLevel option will be available as
well.
Configure Offset
This section does not apply to noise waveform.The offset setting range is limited by the “Load”
and “Amplitude/HighLevel” settings. The range is: ± 5 V into 50 Ω (± 10 V into open circuit). The
default value is 0 Vdc.
Follow the steps below to configure the DC offset of the output:
1. Press the Waveforms button.
2. Select a waveform from the menu.
3. Press the Offset softkey.
4. The cursor position now highlights the first digit of the offset parameter display.
5. Use the rotary knob or the numeric keypad to change the offset. If numeric keypad is
used, the following screen will be displayed after entering a number:
To Next Page
