BK Precision 4050B Series - Configure Offset: DC Waveform

27
5. Use the rotary knob or the numeric keypad to change the two parameters. Both
parameters can be specified in V or mV units.
Configure Offset: DC Waveform
The instrument can output a DC waveform output at a range of voltage levels (-12 Vdc – 12
Vdc).
There is only one parameter, DC Offset, to configure a DC output waveform.
Follow the steps below to configure the parameter.
1. Press the Waveforms button.

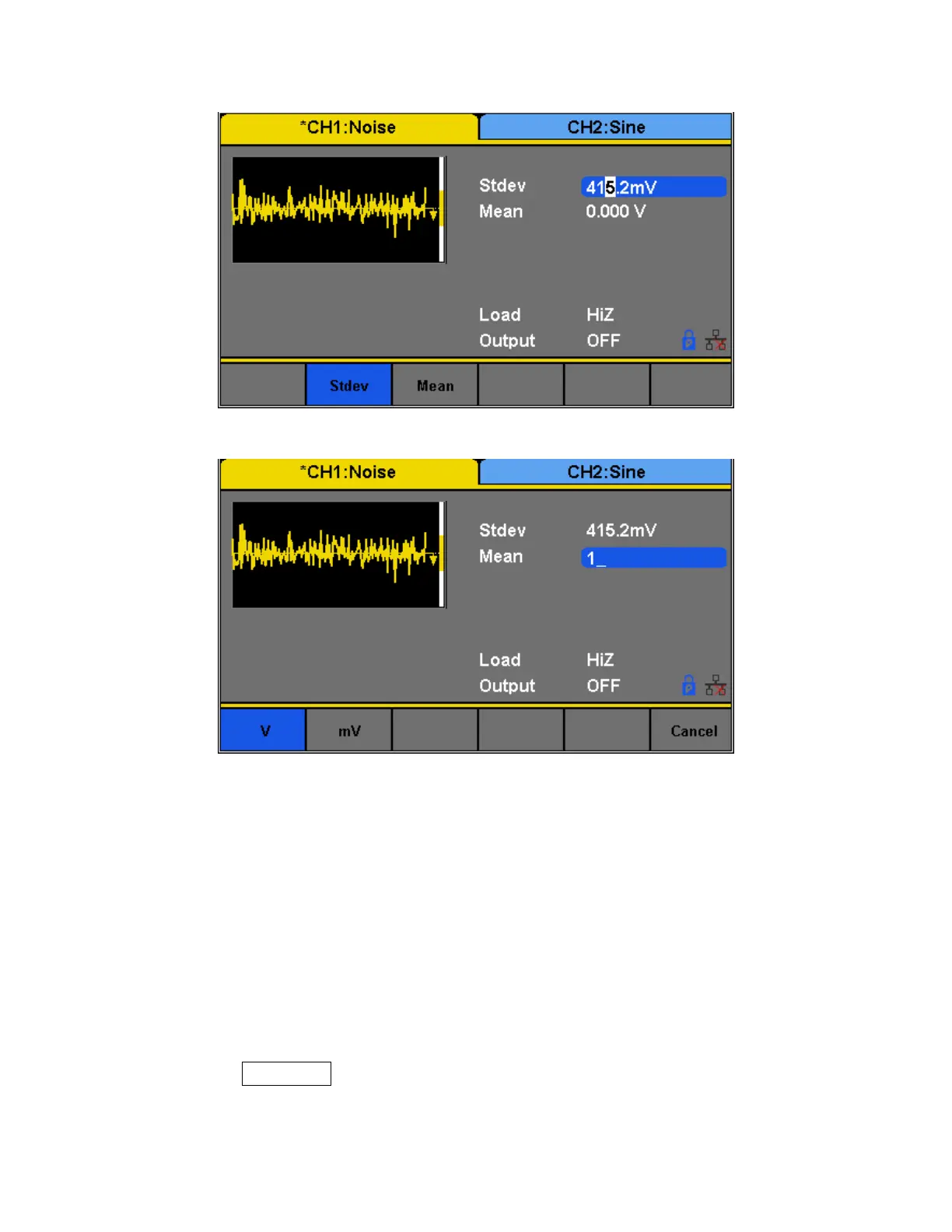

Figure 19 - Noise Standard Deviation
Figure 20 - Noise Mean
