16

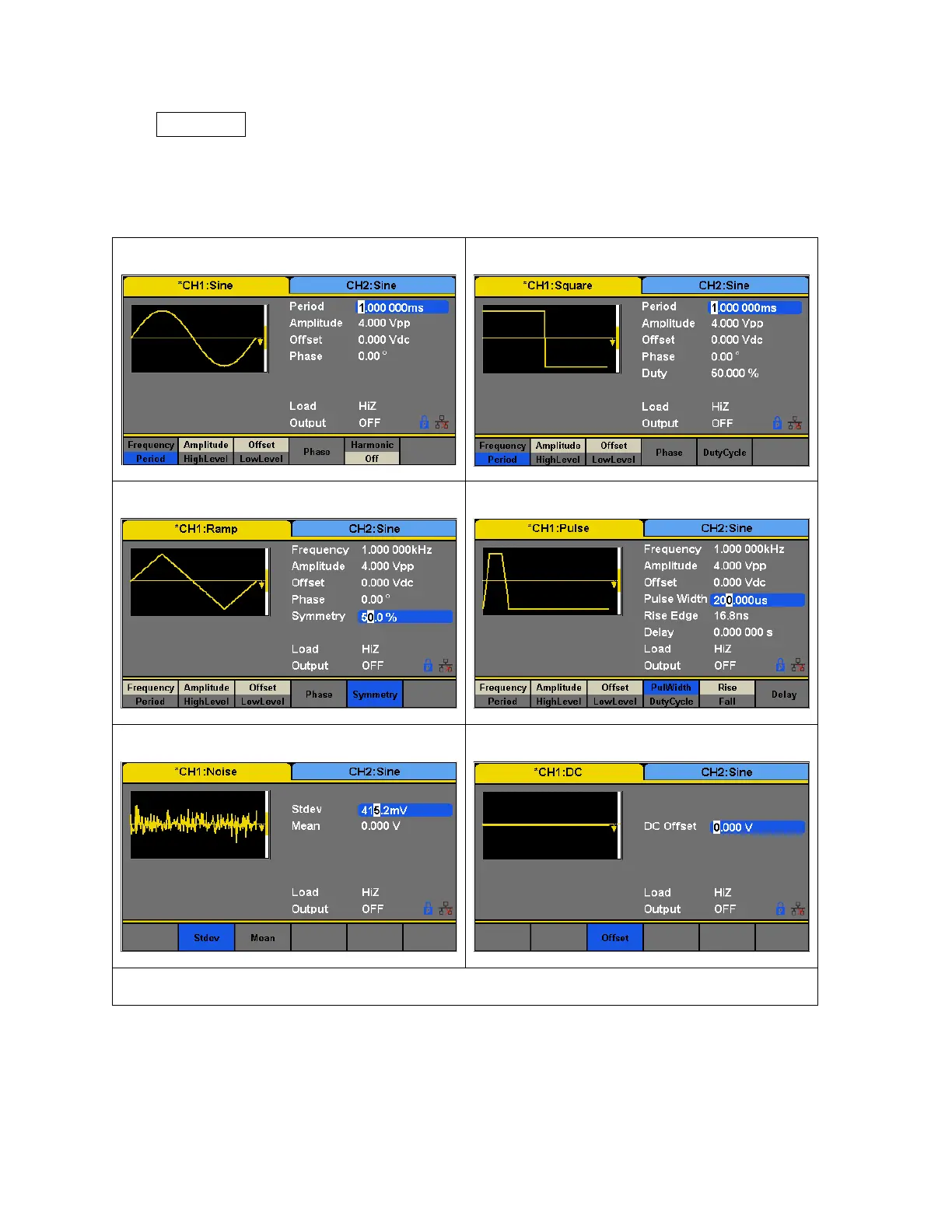

Press Waveforms to select a waveform. Menu options relevant to the selected waveform
shape will display at the bottom of the screen. The screenshots below illustrates the menu
options for each of the waveform types.
Sine Waveform
Square Waveform
Ramp Waveform
Pulse Waveform
Noise Waveform
DC Waveform
Arbitrary Waveform
