42
Function
Menu
Settings
Description
Type
AM
Amplitude modulation
Source
Internal
The source is internal
External
The source is external. Use the [Aux In/Out]
connector at the rear panel.
AM Depth
Set the modulation depth.
Shape
Sine
Choose the modulating waveform.
Square
Triangle
UpRamp
DnRamp
Noise
Arb
AM Freq
Set the modulating waveform frequency.
Frequency range: 1 mHz to 20 kHz (internal source
only).

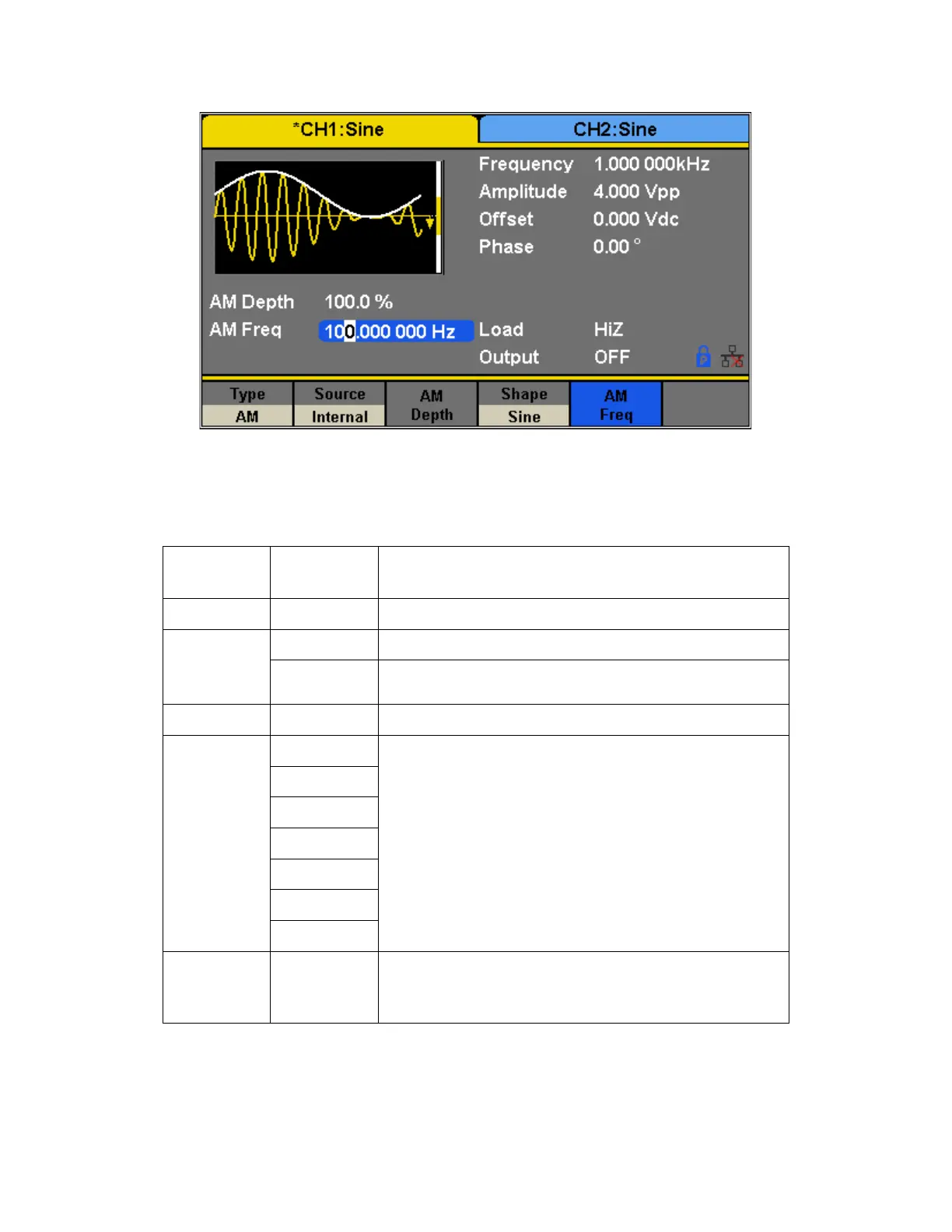

Figure 28 - Setting Interface of AM Modulation
Table 8 - AM Modulation Menu Description
