BK Precision 4050B Series - Page 59

45
Function
Menu
Settings
Description
Type
DSB-AM
DSB Amplitude modulation.
Source
Internal
The source is internal.
External
The source is external. Use the [Aux In/Out]
connector at the rear panel.
DSB Freq
Set the modulating waveform frequency.
Frequency range: 1 mHz to 20 kHz (internal source)
Shape
Sine
Choose the modulating waveform.
Square
Triangle
UpRamp
DnRamp
Noise
Arb

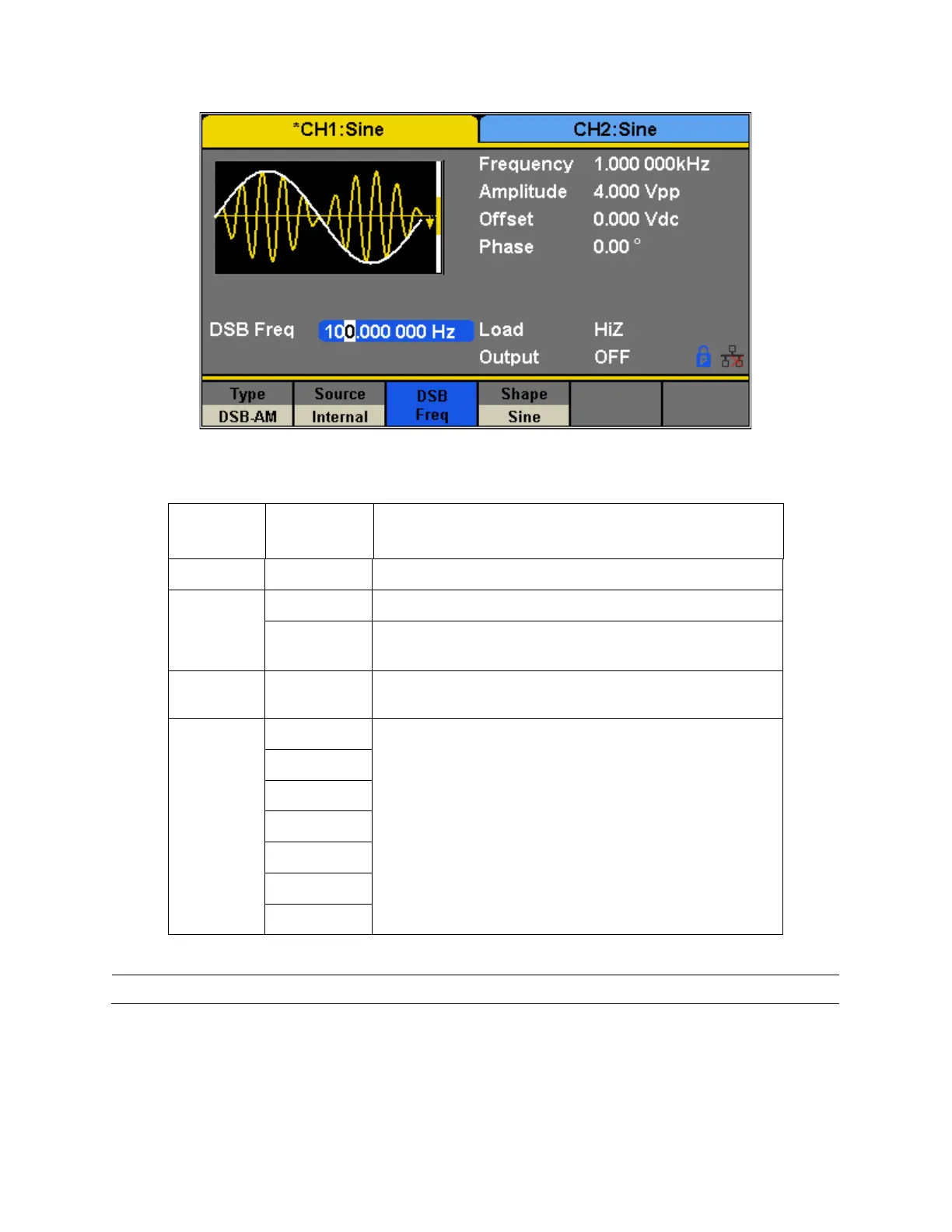

Figure 29 - Setting Interface of DSB-AM Modulation
Table 9 - DSB-AM Modulation Menu Description
Note: The methods of setting the parameters of DSB-AM are similar to AM.
