84
4. Press PhaseDev to enter the following menu:
5. Then use the numeric keyboard or knob and arrow keys to input the desired value for
the phase deviation between CH1 and CH2. The resulting signal is represented by:
PhaseCH2-PhaseCH1=PhaseDev.

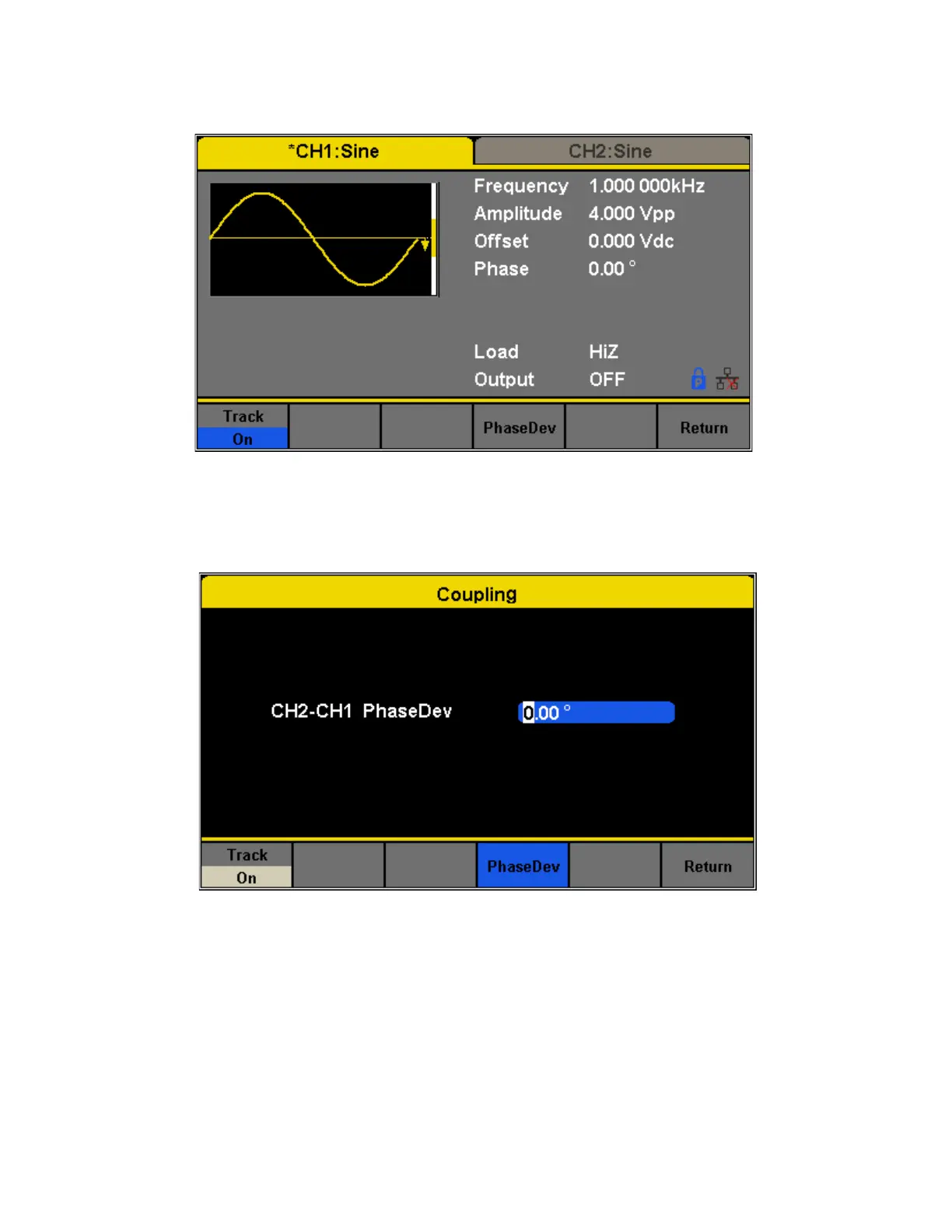

Figure 61 - Tracking
Figure 62 - Phase Deviation
