1.7 Keypad Overview

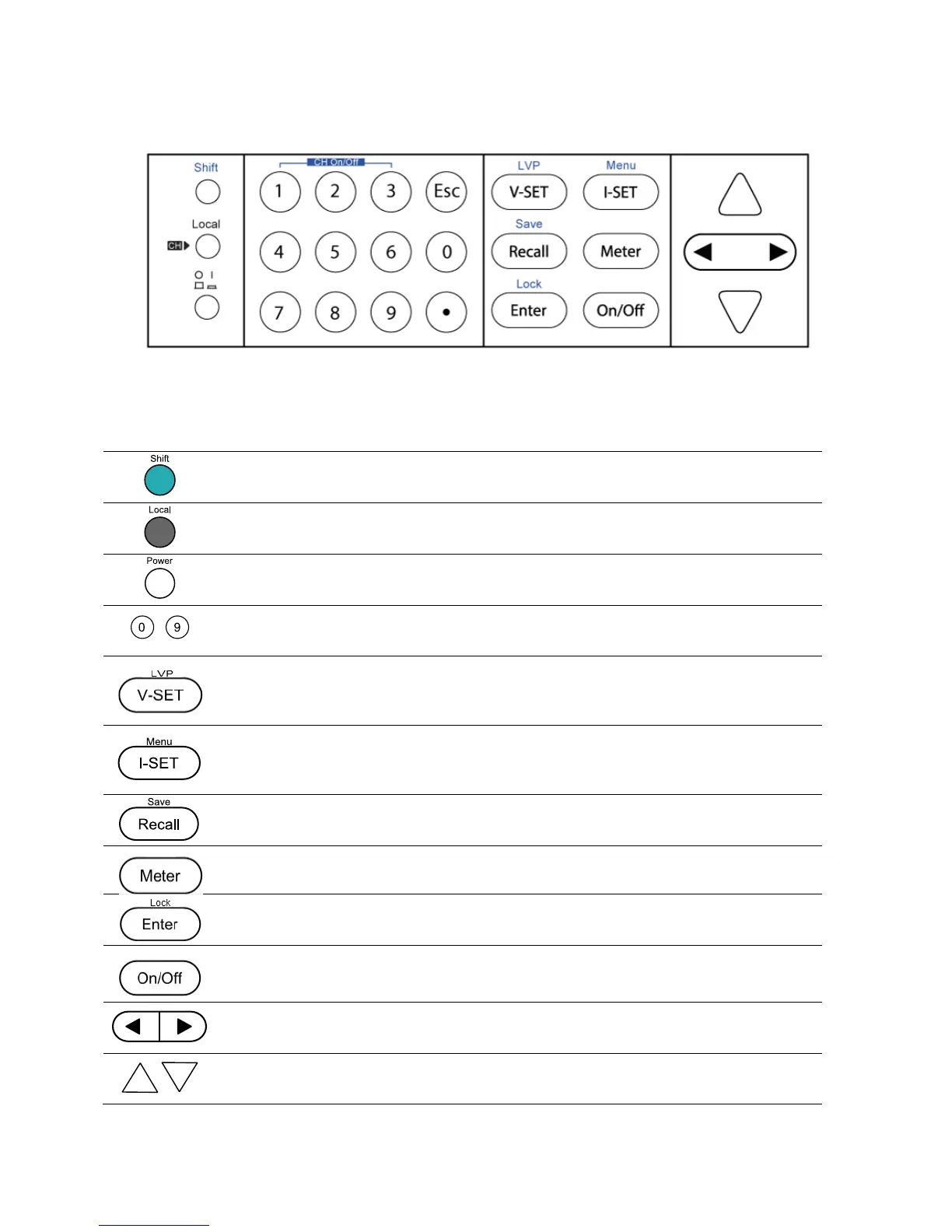

Figure 3 - Keypad
Keypad Description
Shift key
Enables access to secondary functions (Labeled in blue)
Local key
Sets the instrument back to local mode.
Power key
Power on the instrument.
~
Numeric keypad
Enters numeric values for various parameters.
Configures output voltage or sets the limit voltage protection point for the
Configures output current or allows access to the power supply menu
Recall / Save button
Saves and recalls instrument settings.
Meter button
Switches from set value display to metered output value display.
Enter / Lock
Confirms setting or lock front keys.
Output
Controls output On/Off state of each channel of the power supply
Left/Right arrow keys
Adjusts cursor position to left or right or navigate through menu items.
Up/Down arrow keys
Used to select menu items or increase/decrease output voltage, output
