27

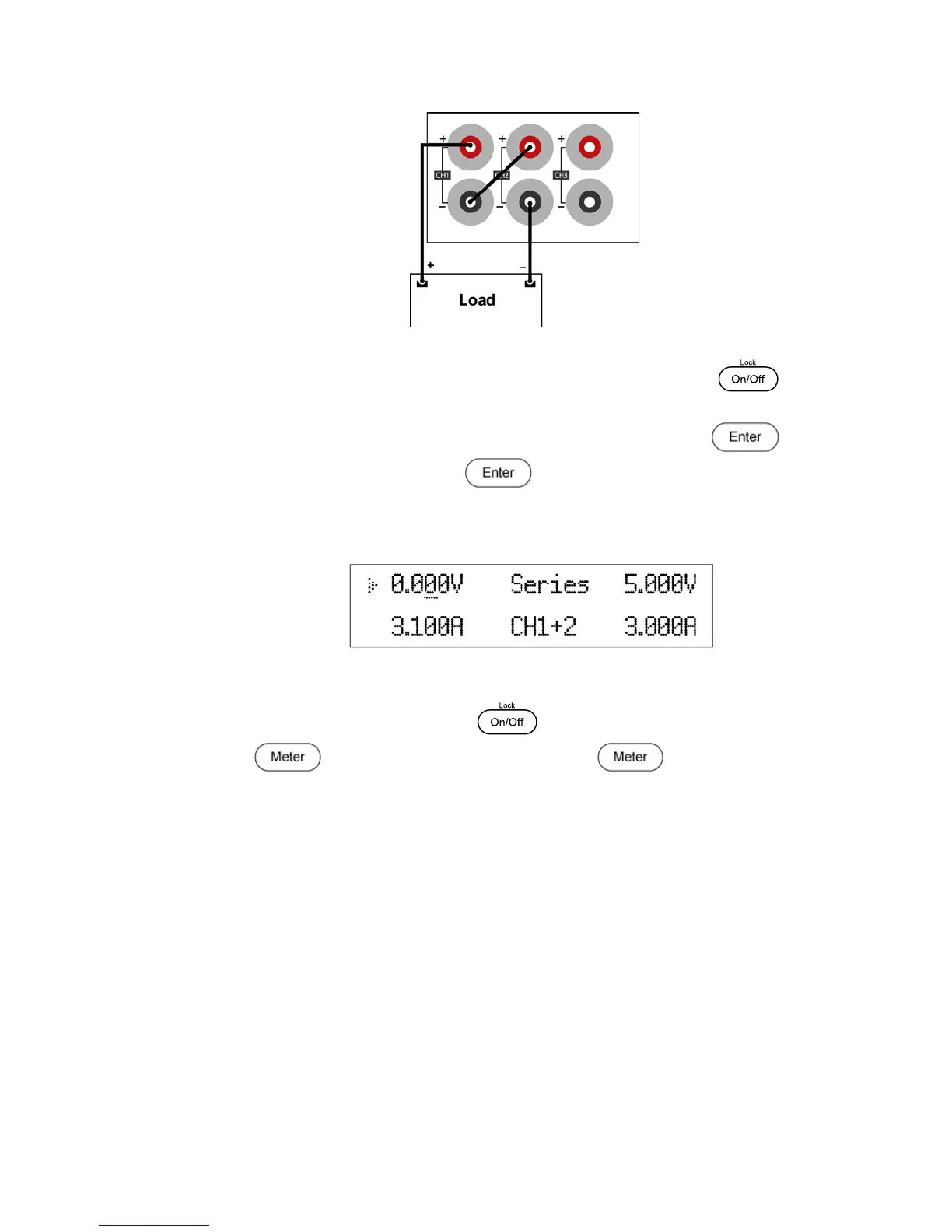

Figure 9 - Series Mode Wiring Diagram
3. Power on the unit and verify that the outputs are disabled (On/Off button
is not illuminated).
4. From the Power Combine Set… menu, select Series and press the button.
5. As CH1+Ch2 is blinking, press the button. The power supply will display
Series Successful! The display should look like the one shown below. Series and
CH1+2 will be shown in the middle of the display.
Figure 10 - Display Series CH1+2
6. Set the voltage and current for CH1+2 and CH3.
7. Enable the outputs by pressing the button.
8. If the button is not illuminated, press the button once to display
the measured voltage and current at the output.
Para (Parallel Mode)
The Parallel mode will increase the available current range that can be supplied by
combining channels 1 and 2, 2 and 3, or All. The following steps will describe the
external wiring and menu options for combining channels CH1+CH2.
1. Power down the unit and remove all wiring from the output terminals.
