Black Box ACR1012A-T User Manual

Chapter 2: Overview
724-746-5500 | blackbox.com
Page 9
2.6 ServSwitch Agility Dual with VNC unit features
The ServSwitch Agility Dual with VNC unit is housed within a durable, metallic enclosure with most connectors situated at the
rear panel - the Ethernet and fiber are situated on the front panels.

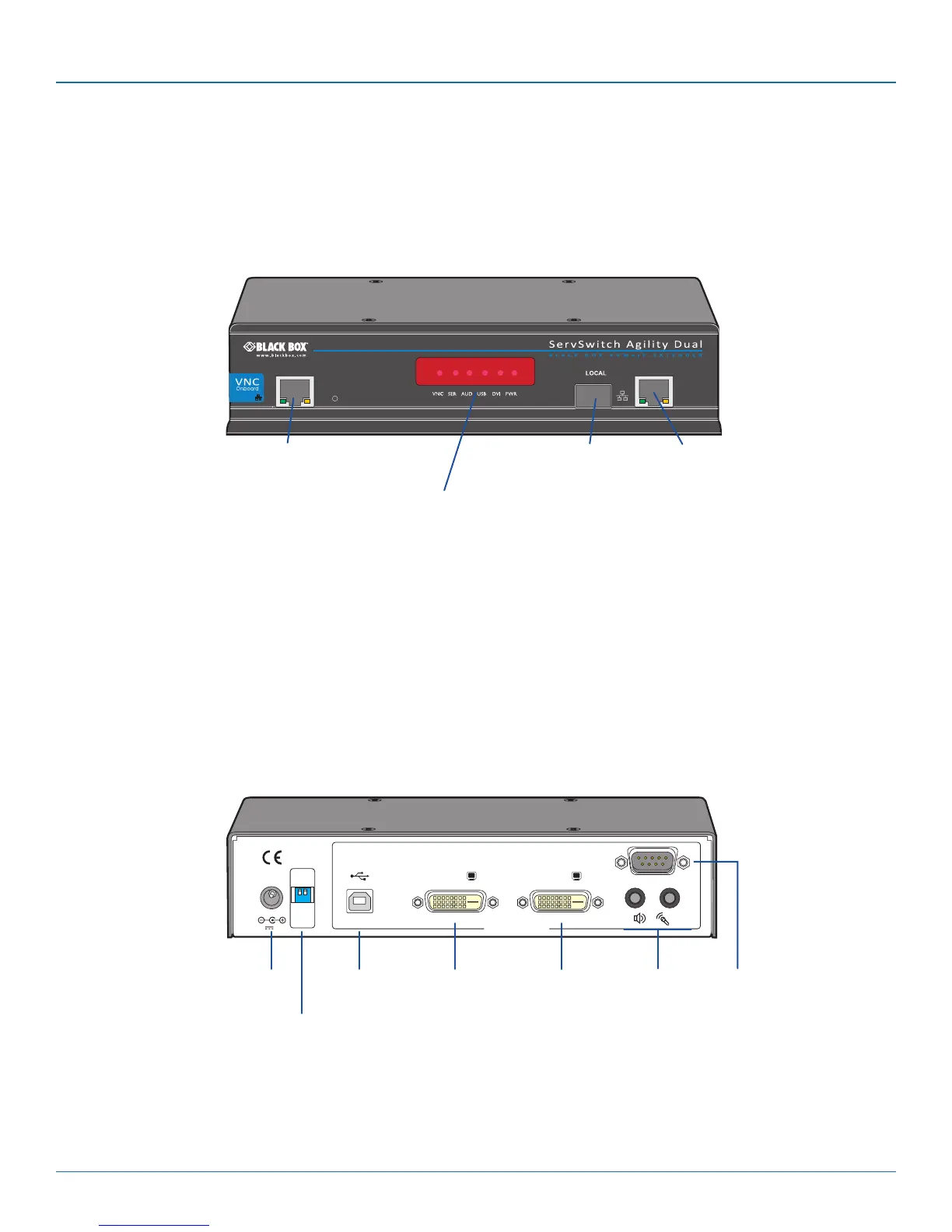

2.6.1 ServSwitch Agility Dual with VNC local transmitter unit
The smart front faces feature the operation indicators as shown below:
System
(Gigabit
Ethernet)
port
Indicators
These six indicators clearly show the key aspects of operation:
• VNCOnwhenaVNCviewerisconnected.
• SER OnwhentheAUX(serial)portisenabledandactive.
• AUDOnwhenaudioisenabledandactive.
• USB OnwhenUSBisenabledandactive.
• DVI OnwhenDVIvideoisenabled.
• PWR Powerindicator.
The rear panel of the local transmitter unit contains most of the connectors:
Teaming
port
VNC Port
AUX
COMPUTER
ON
21
INDOOR
USE ONLY
OPTIONS
1 2
DVI-D-1
5V 2.5A
DVI-D-2
IN OUT
Primary
video
input
Audio
line
in/out
AUX
(serial)
port
USB
port
Configuration
switches
Power
input
Secondary
video
input
