ServSwitch Agility Dual with VNC
724-746-5500 | blackbox.com
Page 8

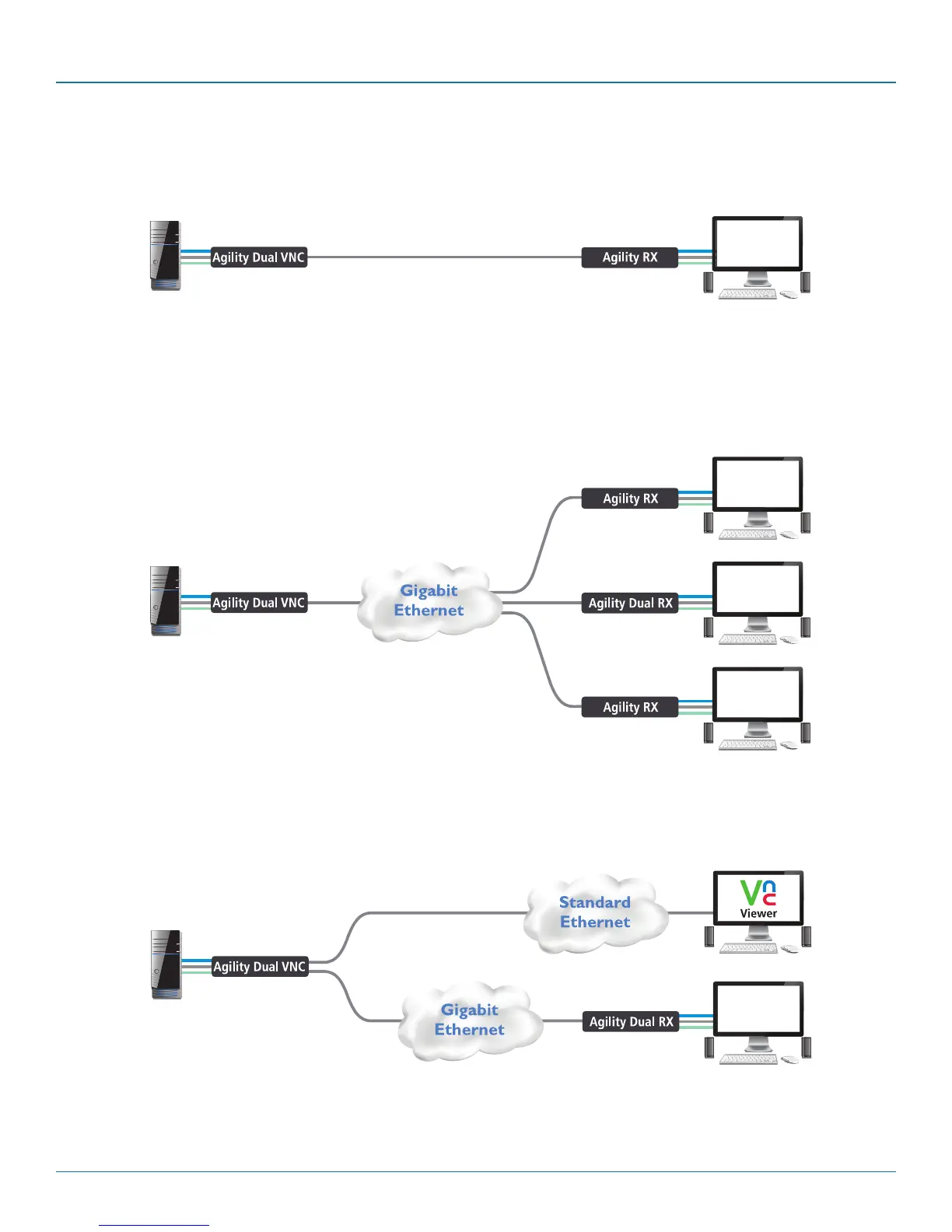

2.3 One-to-One Configuration
The simplest configuration links one remote receiver unit to a single local transmitter unit, either by a direct link (up to 100m) or
over much greater distances via a Gigabit Ethernet network:
One-to-one configuration
2.4 One-to-Many Configuration
Using multicast techniques, an unlimited number of receivers* can receive video and audio data streams from a single local trans-
mitter unit.
One-to-many configuration
2.5 Low Bandwidth VNC Connection
Up to sixteen remote users can log in via standard networks to view the output from the ServSwitch Agility Dual with VNC:
Low bandwidth VNC connection
