Page 153
724-746-5500 | blackbox.com
Chapter 4: Configuration
Devices) for the selected macro command.
5. Confirm your inputs by pressing the <Enter> key and repeat the process for
further macro commands, if necessary.
Java Tool
In the working area of the “Definition > CON Devices” menu, select the console
for which a console macro has to be created and open the “Macros” tab.

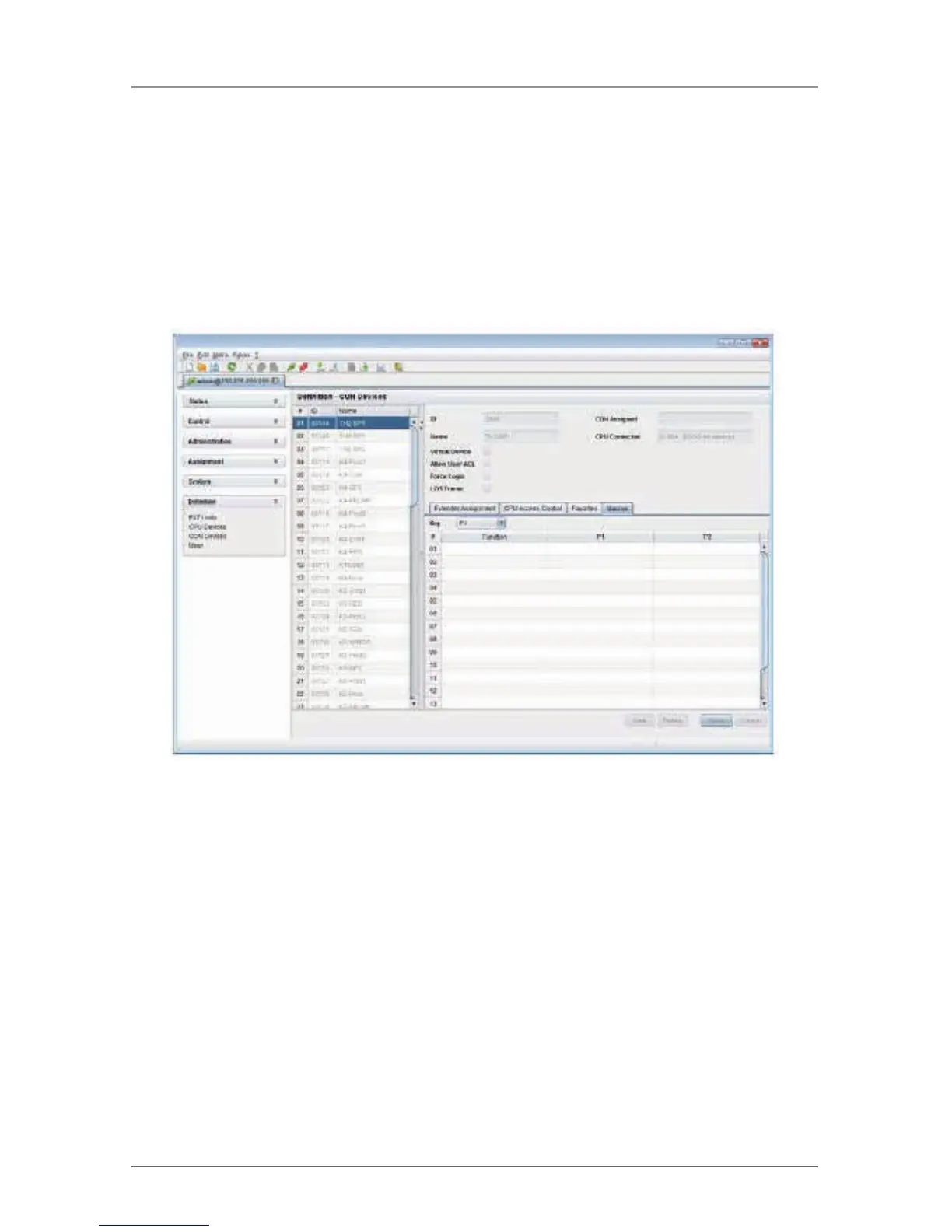

Figure 4-66. Menu Definition - CON Devices
To create a macro for the selected console, proceed as follows:
1. Select the number key (1-16) for which a macro has to be created.
2. In the “Function column, select the commands that should be part of the
macro. Open the selection list by double-clicking on the empty fields.
3. In the P1 and P2 columns, select the respective parameters for the macro
functions (for example, corresponding consoles and CPUs).
4. To confirm your inputs, press the “Apply” button.
