Chapter 4: Configuration
Switch between up to four connected sources (computer, CPU) smoothly. Simply
move the mouse pointer to the next monitor.
Monitors can be arranged in sequence or as a square.
NOTE: When using sources (computers, CPUs) in multi-head operation (e.g.,
dual-head), the switching only works manually via keyboard commands.
NOTE: To enable Multi-Screen Control, all Extender Units assigned to the CON
device must be physically connected to the same block of four ports
consecutively on the I/O board of the matrix.
NOTE: CON Units that have been already configured for Multi-Screen Control can
be connected together to other blocks of four ports. In this case, any
further configuration is not necessary. The functionality will still be
available.
OSD
Select Assignments > Multi-Screen Control in the main menu.

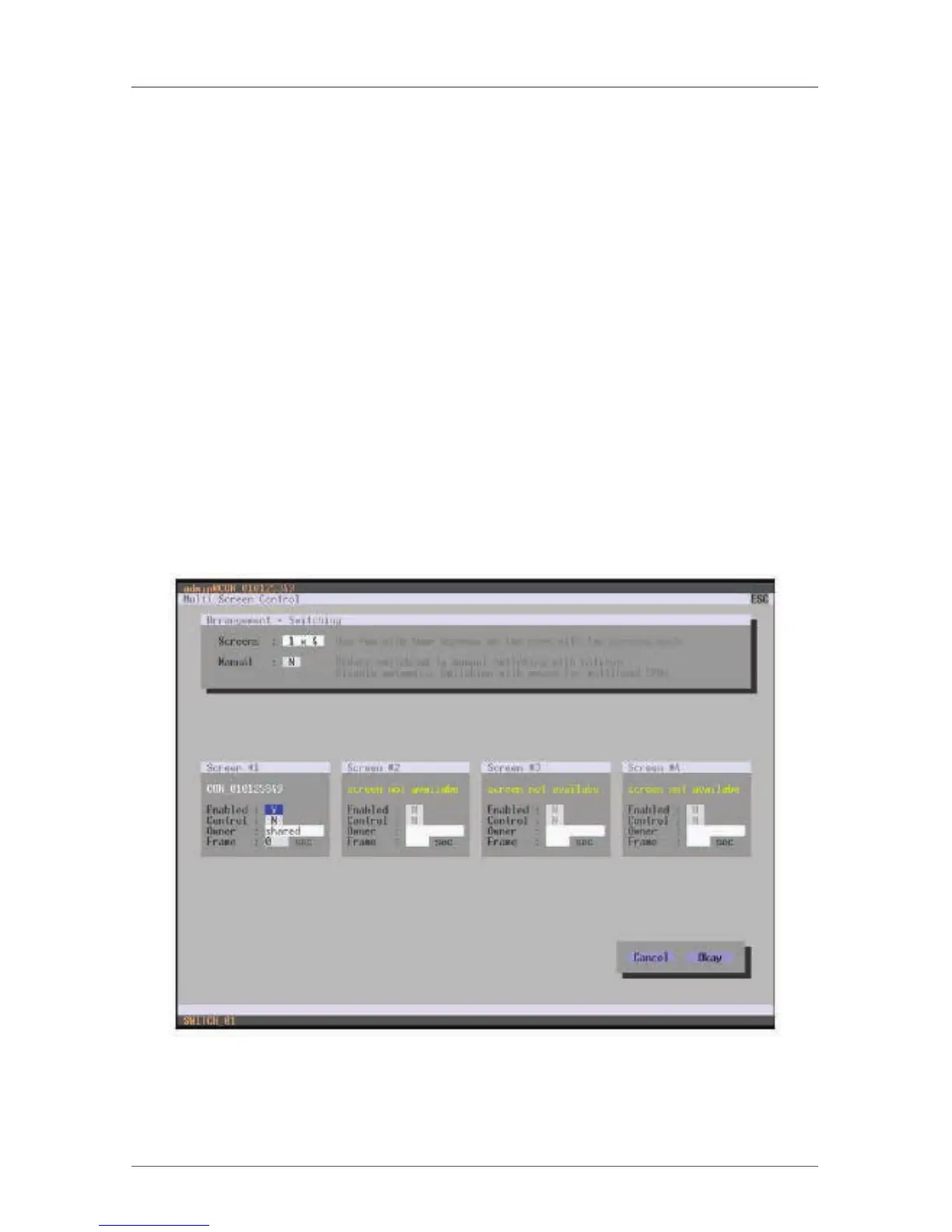

Figure 4-70. Menu Assignments—Multi-Screen Control.
