Chapter 5: Operation
NOTES:
To perform switching operations immediately without confirmation, activate the
“Auto Send” function in the left lower corner of the working area. Switching
operations will be done immediately without confirmation when you press the
“Send” button.
By activating the “Hide Devices w/o Extender Assignment” function in the left
lower corner of the working area, only CON and CPU devices that are assigned to
an extender are shown.
Option 2:
Select “Status > Matrix View” in the task area.

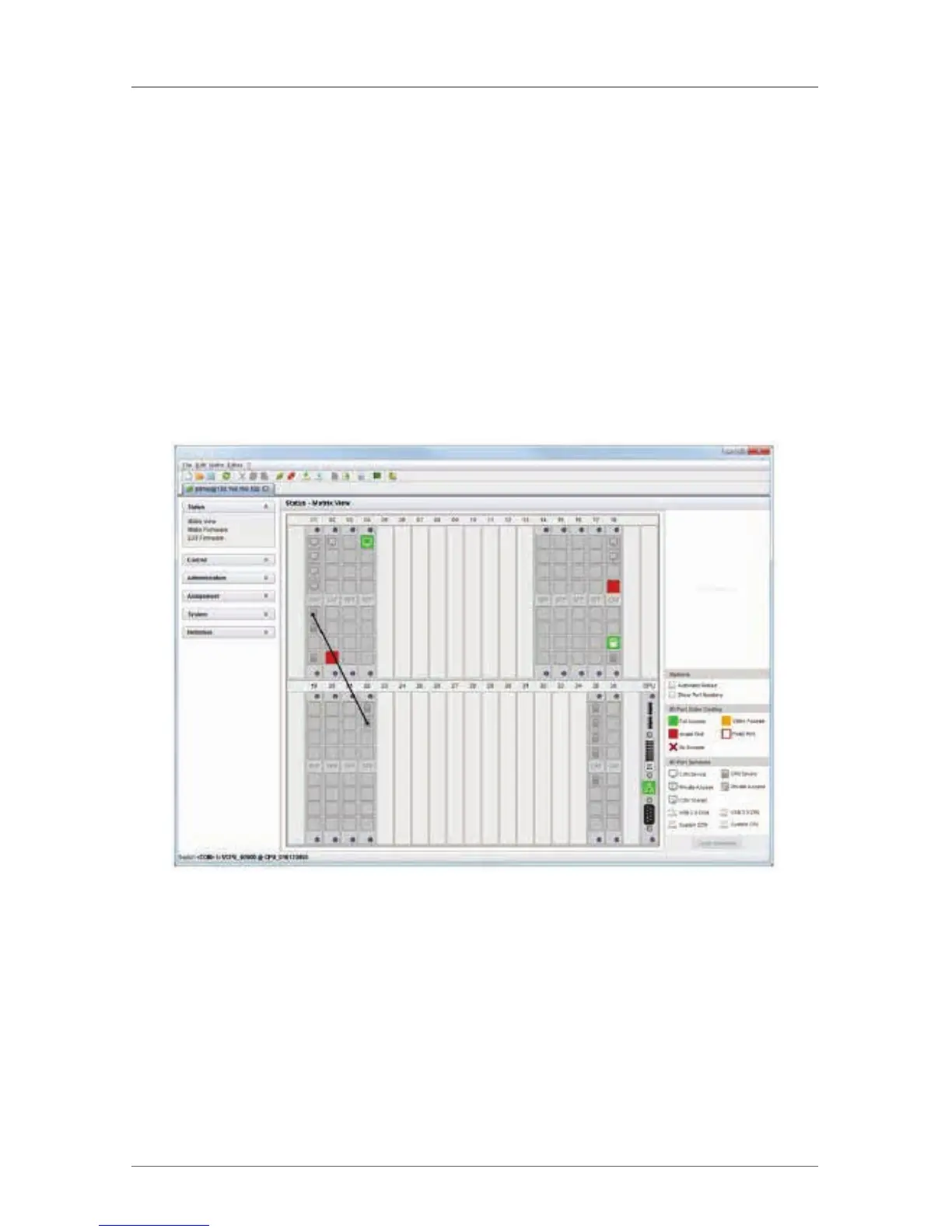

Figure 5-8. Menu Status – Matrix View
To perform switching operations between CON and CPU devices, follow these
steps:
1. Move the mouse cursor to the port that has to be switched.
2. Hold down the left-mouse button and move the cursor to the port that has to
be connected to the initial port. The current cursor movement will be displayed
by a black auxiliary line.
To Next Page
