Page 46
724-746-5500 | blackbox.com
Chapter 2: Overview

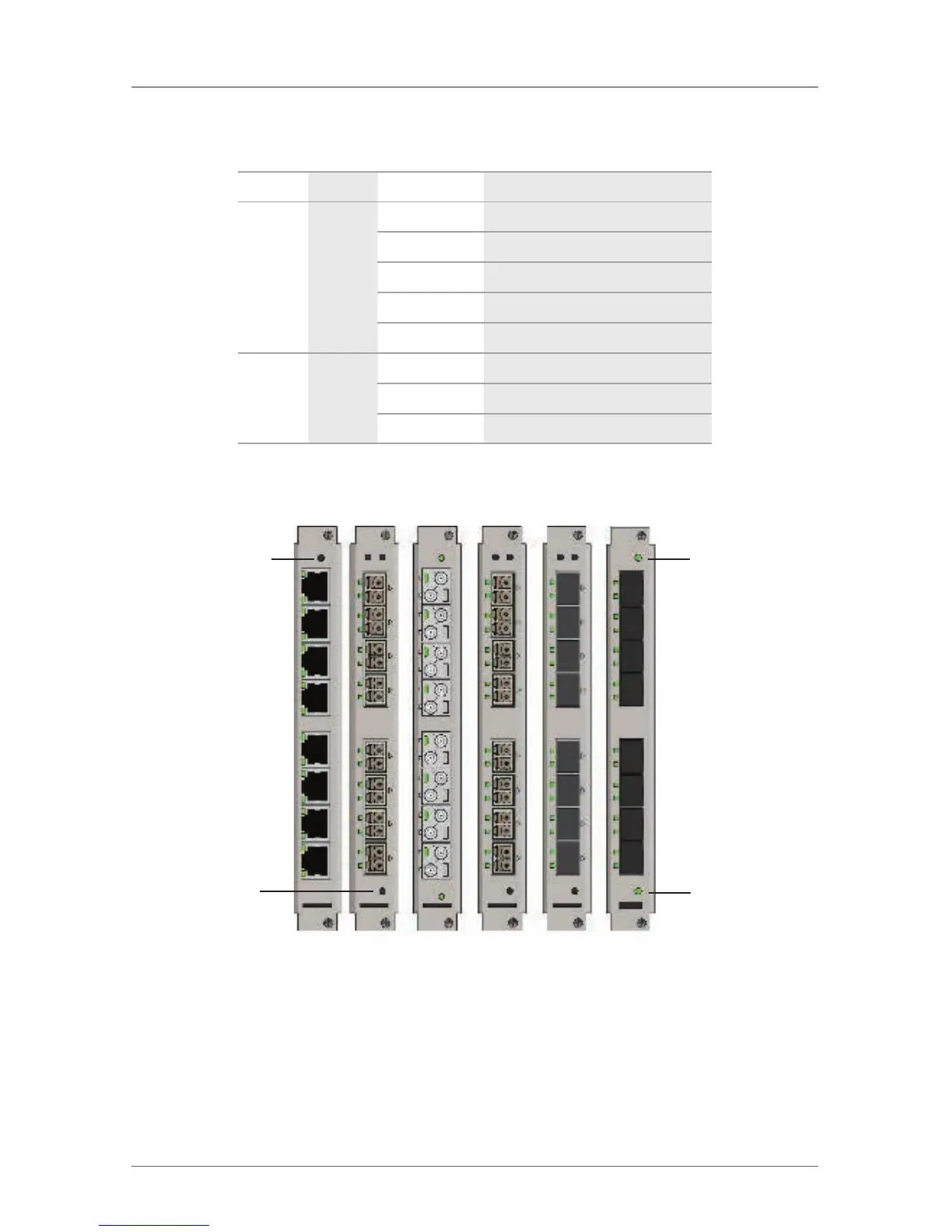

Table 2-34. Status LEDs on the CPU board.
Number LED Status Description
1 Status 1
White CPU board is in registration process
Blue flashing Registration at the matrix is started
Red flashing Registration is in progess
Green flashing Operating condition
Green CPU board de-registered
2 Status 2
White CPU board is in registration process
Red flashing Registration at the matrix is started
Off Operating condition
NOTE: Because of variations in the LED type, “white” may also appear as light
purple or light blue.
1
2
1
2
ACXI08-C ACXI08-SM ACXI08-SDI ACXI-8-HS ACXI-8-SFP ACXI08-6G
Figure 2-33. LEDs on the I/O boards.
