Page 47
724-746-5500 | blackbox.com
Chapter 2: Overview
Table 2-35. Status LEDs on the I/O boards.
Number LED Status Description
1 Status 1
Light blue I/O board in boot process
Red flashing I/O board in registration process
Red/Yellow flashing I/O board in service mode or firmware conflict with CPU board
Green flashing Operating condition, I/O board registered at the matrix
Green I/O board de-registered (locking pin pulled out)
2 Status 2
White I/O board in boot process
Blue I/O board in registration process
Blue flashing
Operating condition, communication active with CPU board
active
Red flashing I/O board de-registered (locking pin pulled out)
CATx SFP fiber SFP coax
1
2
1
1
2
2

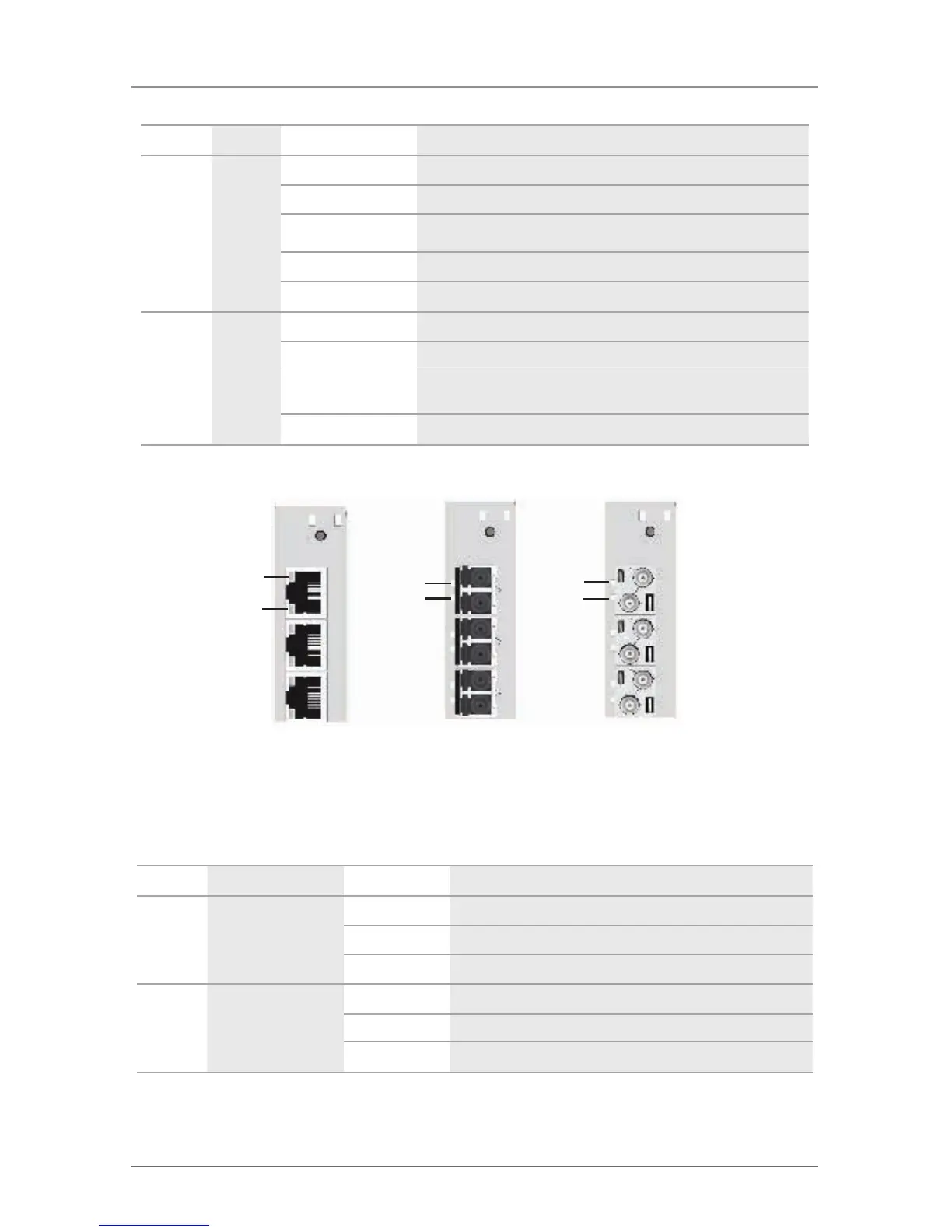

Figure 2-34. Ports status LEDs on the I/O boards.
Table 2-36. Port status LEDs on the I/O boards.
Number LED Status Description
1 Link status (green)
Off Port not activated
Flashing Port activated, no connection via interconnect cable
On Connection via interconnect cable OK, data traffic active
2 Link status (orange)
Off Port not activated
Flashing Port activated, no connection via interconnect cable
On Connection via interconnect cable OK, data traffic active
