Chapter 2: Overview
1 2 3

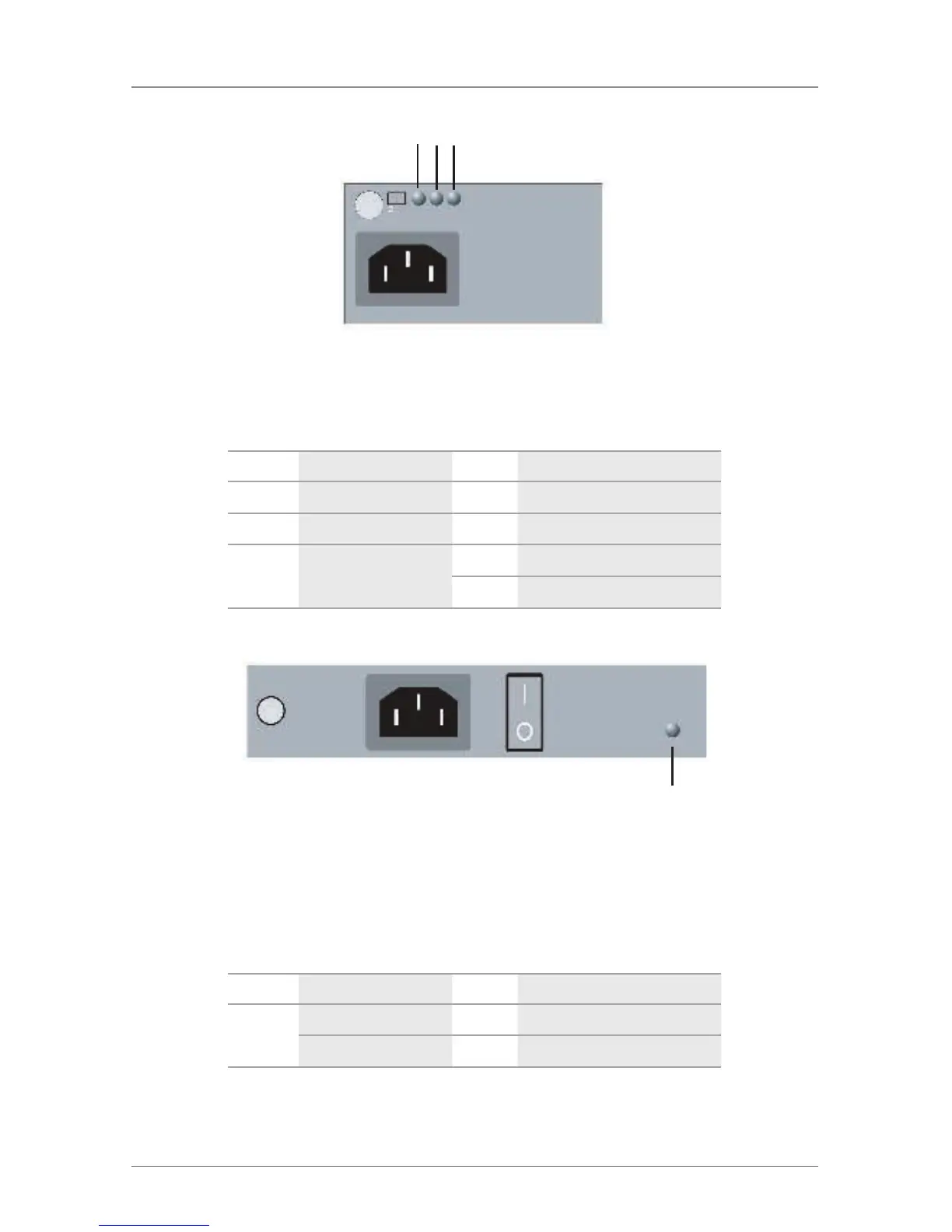

Figure 2-36. Status LEDs on the power supply unit (ACX288-PS).
Table 2-38. Status LEDs on the power supply unit
(ACX288-PS).
Number LED Status Description
1 AC input OK (green) On Operating condition
2 DC output OK (green) On Operating condition
3 O/T (yellow)
Off Normal temperature
On High temperature
1
Figure 2-37. Status LEDs on the power supply unit (ACX080-PS).
Table 2-39. Status LEDs on the power supply unit
(ACX080-PS).
Number LED Status Description
1
DC input OK (green) On Operating condition
DC output OK (green) Off No power supply
