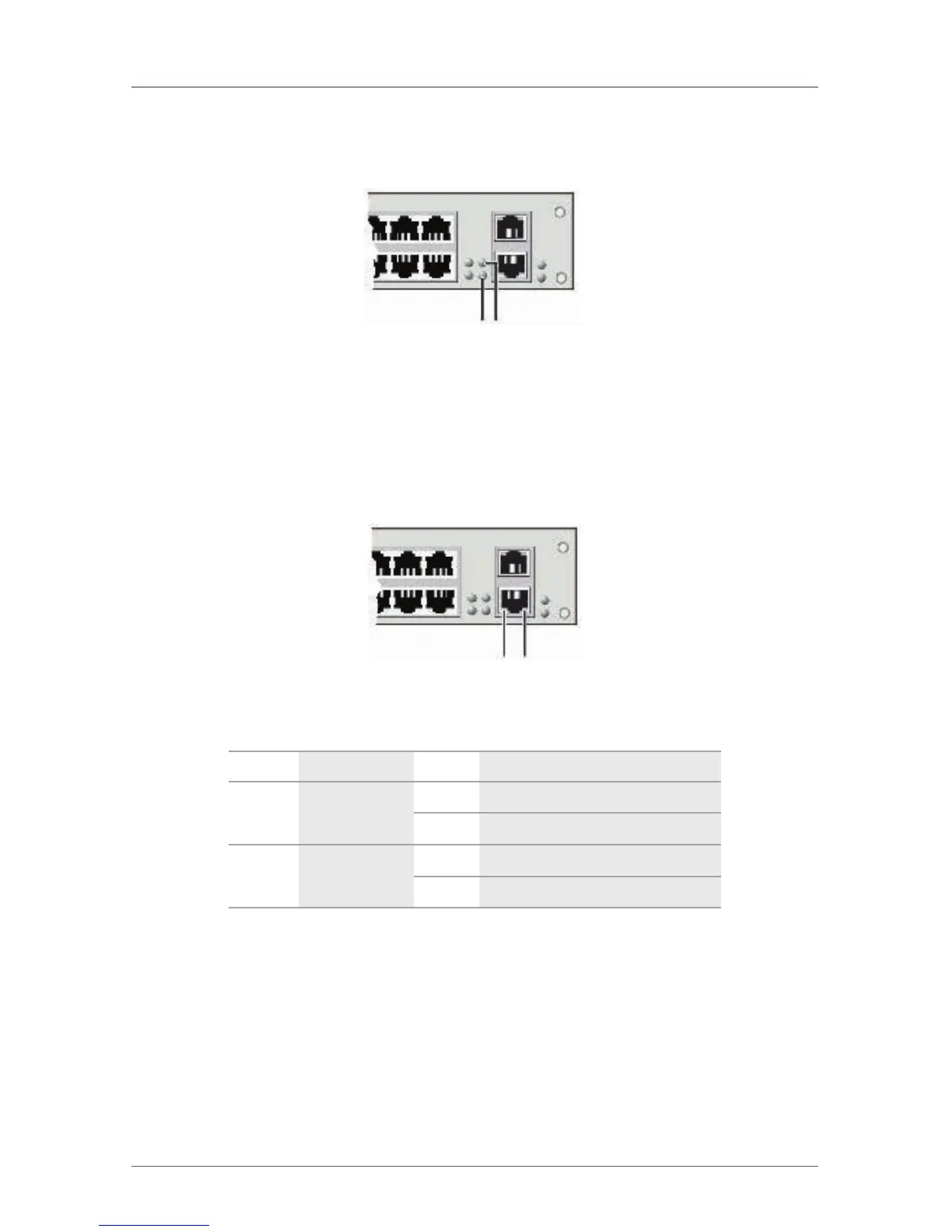

Status LEDs on ACXC8, ACXC8F, ACXC16, ACXC16F, ACXC32, ACXC32F,
ACXC48, ACXC48F16, ACXC38F32, ACXC64, ACXC64F, ACXC80, ACXC80F
1 2
NOTE: Because LED type varies, “white” might also appear as light purple or light
blue.
LAN Port LEDs on the ACXC8, ACXC8F, ACXC16, ACXC16F, ACXC32,
ACXC32F, ACXC48, ACXC48F16, ACXC38F32, ACXC64, ACXC64F, ACXC80,
ACXC80F
1 2
Number LED Status Description
1
Status LED 1
(orange)
On Connection to network is available
Off No connection to network
2
Status LED 2
(green)
Flashing Data traffic is active
Off Data traffic is not active
