Chapter 2: Overview

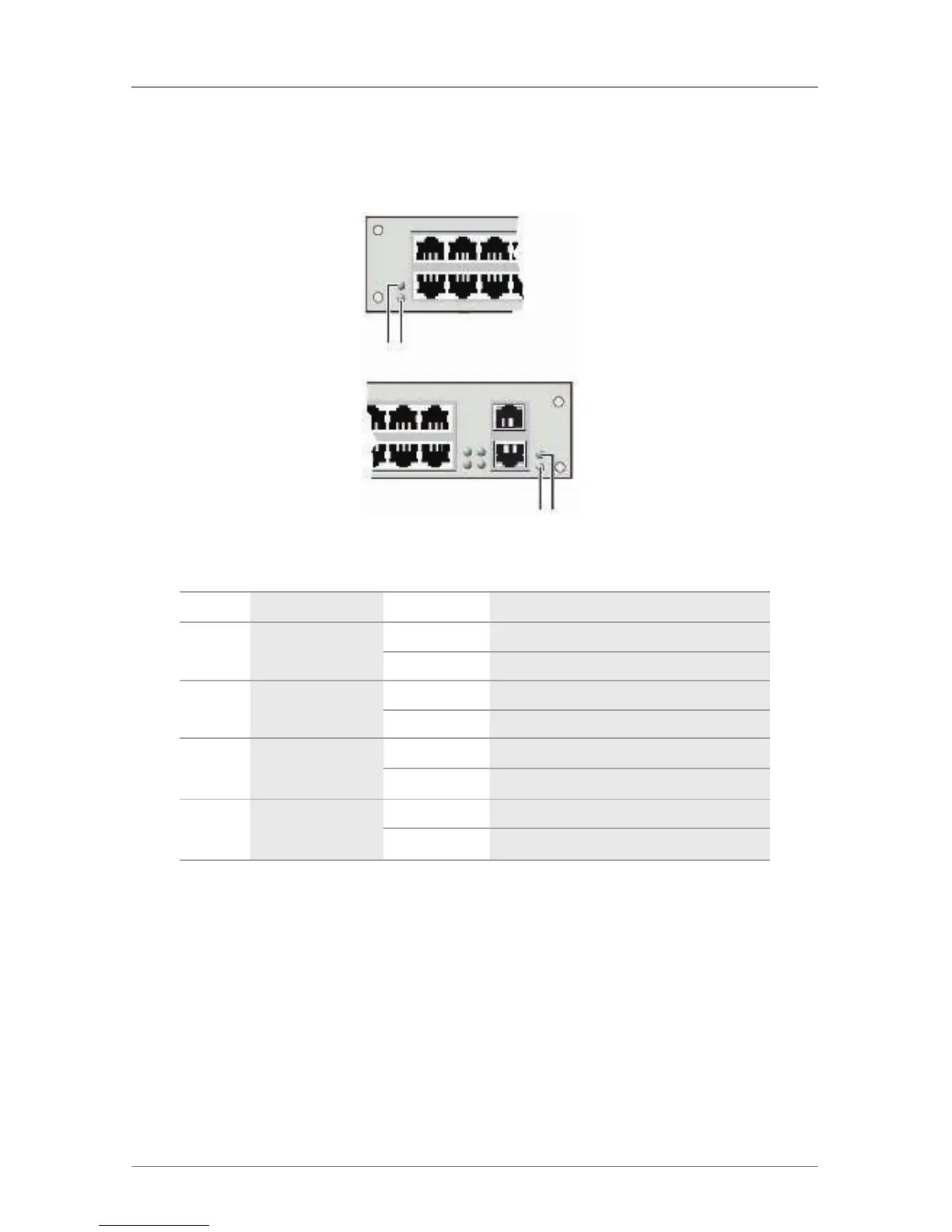

Fan Tray Status LEDs on ACXC8, ACXC8F, ACXC16, ACXC16F, ACXC32,
ACXC32F, ACXC48, ACXC48F16, ACXC38F32, ACXC64, ACXC64F, ACXC80,
ACXC80F
1 2
1 2
Number LED Status Description
1
Left Fan Status 1
(red)
On Error indication
Off Operating condition
2
Left Fan Status 2
(green)
On Operating condition
Off Fan off
3
Right Fan Status 2
(green)
On Operating condition
Off Fan off
4
Right Fan Status 1
(red)
On Error indication
Off Operating condition
