Blackmagicdesign Teranex 2D Processor User Manual

Getting Started with Conversion
12

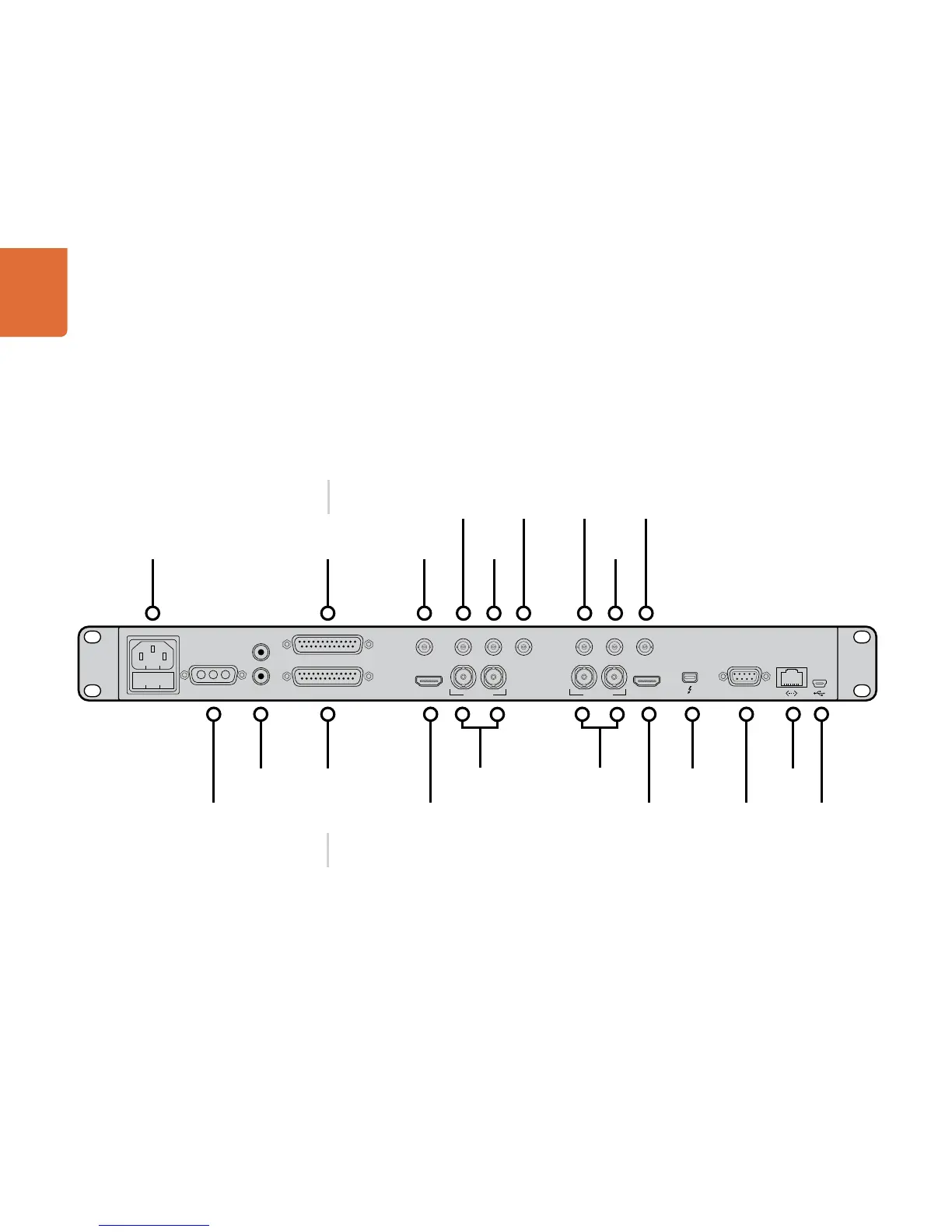

Teranex 2D Processor Connection Reference Guide
DB-25 pin outs also compatible
with Yamaha
™
, Mackie
™
, Sony
™
and Apogee
™
connectors.
DB-25 pin outs also compatible
with Yamaha
™
, Mackie
™
, Sony
™
and Apogee™ connectors.
STEREO IN AES/EBU DIGITAL AUDIO IN/OUT HDMI IN
IN
REF IN Y/NTSC/PA L IN Y/NTSC/PAL OUTB-Y IN B-Y OUTR-Y IN R-Y OUT
LOOP OUT OUT
SD/HD/3G-SDI
HDMI OUT
ANALOG AUDIO IN/OUT
GND +12V GND
AUX POWER
L
R
REMOTE IN/OUT
SD/HD/3G-SDI
Power
Connection
B-Y In B-Y Out
Y/NTSC/PAL
In
Y/NTSC/PAL
Out
R-Y In R-Y Out
REF In
Analog Audio
In/Out
(4 Channels)
SD/HD/3G-SDI
In/Loop
SD/HD/3G-SDI
Out
HDMI In HDMI Out Remote In/Out USB
AES/EBU
Digital Audio
In/Out
(8 Channels)
Stereo In
L /R
+12V AUX
Power Connection
(Power Supply
Optional)
Thunderbolt
™
Ethernet
